Tempat asal:
Cina
Nomor model:
65x80x70

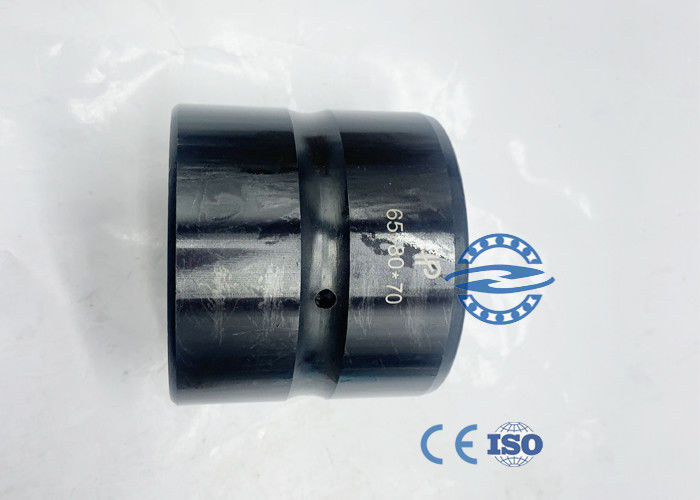

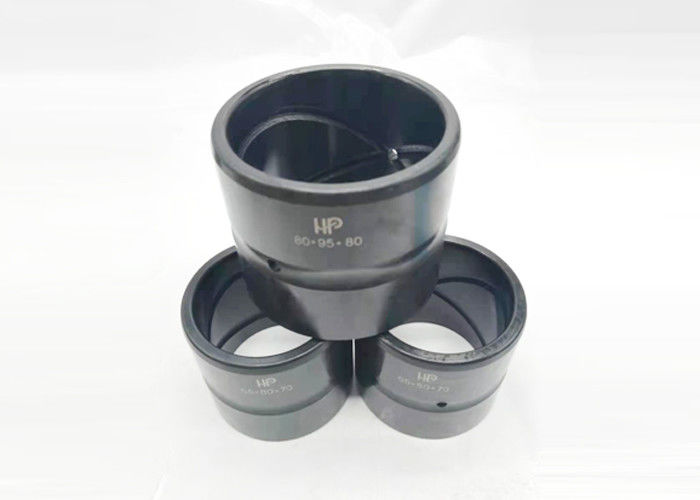

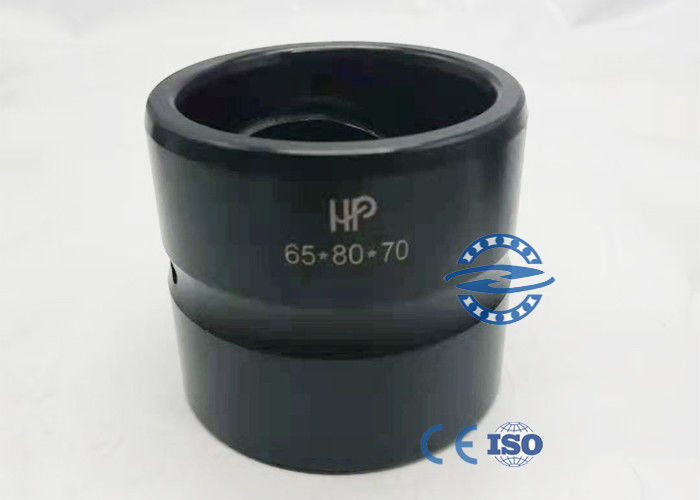

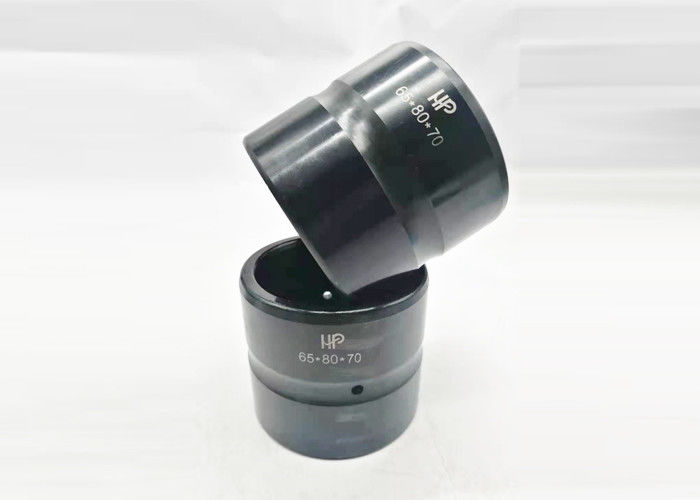

Baja Excavator Bucket Arm Pin Bushing 65x80x70 80x95x80
1 .Deskripsi Produk
Pabrik kami dapat memproduksi jenis semak, dari ID 20mm-150mm.
Bahan utama adalah 45 # baja 40Cr 42crmo.tembaga dll
Dapat menerima hasil sesuai gambar, atau sampel,
Dapat menawarkan laporan pengujian
Dapat menawarkan laporan konten materi,
Detail Kemasan:
Kemasan standar atau sesuai dengan kebutuhan pelanggan
Waktu pengiriman
Sesuai dengan jumlah pesanan detail Anda
3 . suku cadang excavator excavator bucket bush arm bush pin bush Arm Pin Bushing 65x80x70 80x95x80
1, 40Cr Bucket bush
2, Sertifikasi: ISO9001: 2000
3, Perawatan: perlakuan panas
4, pengiriman cepat
4. BUSH PIN EXCAVATOR, BUSH KEKUATAN, BUSH WARNA:
DAFTAR UKURAN:
| BUSHING Ember | ||
| BOS | BOS | BOS |
| 35*45*50 | 70*85*80 | 100*130*100 |
| 35*45*30 | 70*85*70 | 110*130*90 |
| 35*45*40 | 70*85*60 | 110*135*100 |
| 40*50*60 | 70*85*50 | 110*125*120 |
| 40*50*50 | 70*90*90 | 100*116*100 |
| 45*55*50 | 70*100*90 | 80*95*100 |
| 45*55*60 | 75*90*90 | BUSHING WARNA |
| 45*60*50 | 80*90*90 | 45*55*50 |
| 45*60*60 | 80*95*90 | 50*65*60 |
| 50*60*60 | 80*95*80 | 60*75*70 |
| 50*60*50 | 80*95*70 | 65*80*70 |
| 50*65*50 | 80*95*60 | 65*85*60 |
| 50*65*60 | 80*105*90 | 70*85*90 |
| 50*65*70 | 80*100*90 | 70*90*90 |
| 50*70*60 | 80*96*90 | 70*100*90 |
| 55*65*60 | 80*95*120 | 80*95*90 |
| 55*70*60 | 80*110*90 | 80*100*90 |
| 55*70*70 | 85*95*90 | 80*105*90 |
| 60*70*60 | 85*100*90 | 80*110*90 |
| 60*70*90 | 90*100*90 | 90*105*90 |
| 60*75*50 | 90*105*90 | 90*110*90 |
| 60*75*60 | 90*105*80 | 90*120*90 |
| 60*75*70 | 90*105*70 | 100*115*90 |
| 60*75*90 | 90*106*90 | BUSH GANDA WARNA |
| 60*75*80 | 90*105*100 | 50*65*60 |
| 60*70*65 | 90*105*110 | 70*85*90 |
| 60*80*75 | 90*105*120 | 90*110*90 |
| 65*75*70 | 90*110*90 | 60*75*60 |
| 65*75*60 | 90*115*90 | 80*95*90 |
| 65*75*90 | 100*115*90 | 90*105*90 |
| 65*80*65 | 100*115*70 | |
| 65*80*80 | 100*115*100 | |
| 65*80*90 | 100*120*100 | |
| 65*80*100 | 105*125*110 | |
| 65*77*70 | 110*125*100 | |
| 70*80*90 | 110*125*110 | |
| 70*85*90 | 110*130*110 | |
4 .Kemasan
1. Kemasan kotak tunggal, lalu di karton lalu di Pallet.
2. Kemasan standar ekspor.
3. Sesuai permintaan pelanggan.
