Inovasi ZH Bearing,
dan Putar Puncak Dunia Bantalan！
Dimulai dengan kebutuhan pelanggan, dan akhirnya kepuasan pelanggan.
Penjualan & dukungan:
 |
| Tempat asal: | Cina |
| Nama merek: | ZH NTN |
| Nomor model: | UC212 |
| Certifiexcavatorion: | ISO9001-2000 / CE / ROHS / UL / |
| Kuantitas min Order: | Bagian 1 |
|---|---|
| Harga: | negotiable |
| Kemasan rincian: | ZH NTN |
| Waktu pengiriman: | 1-2 hari kerja |
| Syarat-syarat pembayaran: | L/C, D/A, T/T, Western Union |
| Menyediakan kemampuan: | 500 Potongan per hari |
| Produk: | kecepatan tinggi bantal blok bantalan | Nama bagian: | NSK Pillow Ball Bearing Insert Ball Bearing 207NPPB 35mm × 72mm × 17mm |
|---|---|---|---|
| Aplikasi: | Alat mesin | Bahan: | Gcr15 |
| Nilai presisi: | ABEC-3 / ABEC-5 | Kode HS: | 8482100000 |
| Cahaya Tinggi: | plummer block bearing,bagian blok plummer |
||

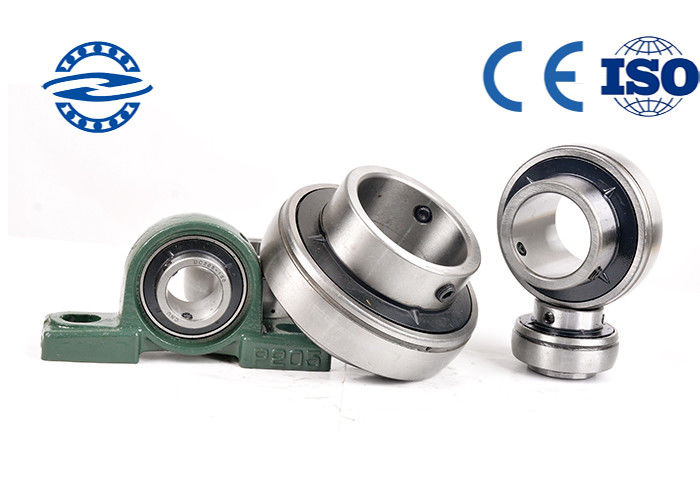

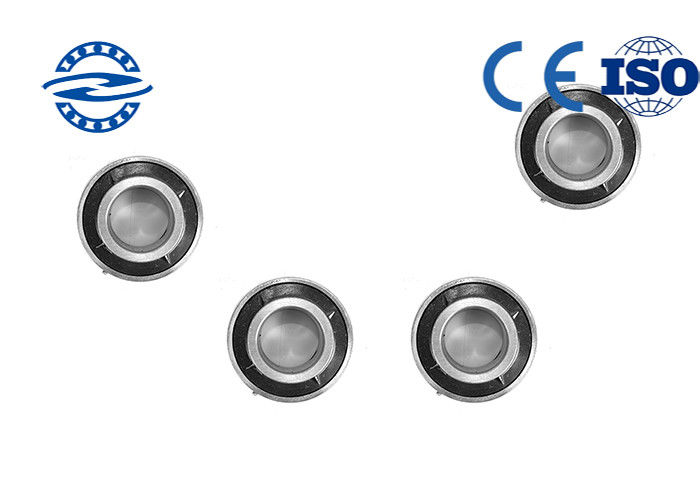

NSK Bantal Ball Bearing Insert Ball Bearings UC207 35mm × 72mm × 17mm
| Bantalan Tidak. | Dimensi mm inci | Rating Beban (KN) | |||||||||
| Dinamis | Statis | ||||||||||
| d | D | B | C | S | S1 | G | ds | F | Cr | Kor | |
| UC201 | 12 | 47 | 31 | 17 | 12.7 | 18.3 | 4.8 | M6 × 1x0.75 | 3.7 | 12800 | 6650 |
| UC201-8 | 1/2 | 1.8504 | 1.2205 | 0,6693 | 0.5 | 0,72 | 0,199 | 1 / 4-2 8UNF | 0.146 | ||
| UC202 | 15 | 47 | 31 | 17 | 12.7 | 18.3 | 4.8 | M6 × 1x0.75 | 3.7 | ||
| UC202-9 | 9/16 | 1.8504 | 1.2205 | 0,6693 | 0.5 | 0,72 | 0,199 | 1 / 4-2 8UNF | 0.146 | ||
| UC202-10 | 5/8 | ||||||||||
| UC203 | 17 | 47 | 31 | 17 | 12.7 | 18.3 | 4.8 | M6 × 1x0.75 | 3.7 | ||
| UC203-11 | 11/16 | 1.8504 | 1.2205 | 0,6693 | 0.5 | 0,72 | 0,199 | 1 / 4-2 8UNF | 0.146 | ||
| UC204 | 20 | 47 | 31 | 17 | 12.7 | 18.3 | 4.8 | M6 × 1x0.75 | 4 | 12800 | 6650 |
| UC204-12 | 3/4 | 1.8504 | 1.2205 | 0,6693 | 0.5 | 0,72 | 0,199 | 1 / 4-28UNF | 0.157 | ||
| UC205 | 25 | 52 | 34.1 | 17 | 14.3 | 19.8 | 5 | M6 × 1x0.75 | 4 | 14000 | 7850 |
| UC205-13 | 13/16 | 2.00472 | 1,3425 | 0,6693 | 0,563 | 0,78 | 0.197 | 1 / 4-28UNF | 0.157 | ||
| UC205-14 | 7/8 | ||||||||||
| UC205-15 | 15/16 | ||||||||||
| UC205-16 | 1 | ||||||||||
| UC206 | 30 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5 | M6 × 1x0.75 | 5 | 19500 | 11300 |
| UC206-17 | 1-1 / 16 | 2.4409 | 1.5 | 0,748 | 0,626 | 0,874 | 0.197 | 1 / 4-28UNF | 0.197 | ||
| UC206-18 | 1-1 / 8 | ||||||||||
| UC206-19 | 1-3 / 16 | ||||||||||
| UC206-20 | 1-1 / 4 | ||||||||||
| UC207 | 35 | 72 | 42.9 | 20 | 17.5 | 25.4 | 7 | M8 × 1 | 5.5 | 25700 | 15300 |
| UC207-20 | 1-1 / 4 | 2.8346 | 1,689 | 0,7874 | 0,689 | 1 | 0,276 | 5 / 16-24UNF | 0,216 | ||
| UC207-21 | 1-5 / 16 | ||||||||||
| UC207-22 | 1-3 / 8 | ||||||||||
| UC207-23 | 1-7 / 16 | ||||||||||
| UC208 | 40 | 80 | 49,2 | 21 | 19 | 30.2 | 8 | M8 × 1 | 6 | 29500 | 18100 |
| UC208-24 | 1-1 / 2 | 3.1496 | 1.937 | 0,8268 | 0,748 | 1.189 | 0,315 | 5 / 16-24UNF | 0,236 | ||
| UC208-25 | 1-9 / 6 | ||||||||||
| UC209 | 45 | 85 | 49,2 | 22 | 19 | 30.2 | 8 | M8 × 1 | 6.4 | 31600 | 20600 |
| UC209-26 | 1-5 / 8 | 3.3465 | 1.937 | 0,8661 | 0,748 | 1.189 | 0,315 | 5 / 16-24UNF | 0.252 | ||
| UC209-27 | 1-11 / 16 | ||||||||||
| UC209-28 | 1-3 / 4 | ||||||||||
| UC210 | 50 | 90 | 51.6 | 24 | 19 | 32.6 | 10 | M10 × 1.25 | 6.5 | 35000 | 23200 |
| UC210-29 | 1-13 / 16 | 3.5433 | 2.0315 | 0,9449 | 0,748 | 1.283 | 0,394 | 3 / 8-24UNF | 0,256 | ||
| UC210-30 | 1-7 / 8 | ||||||||||
| UC210-31 | 1-15 / 16 | ||||||||||
| UC210-32 | 2 | ||||||||||
| Model | Bantalan Bantal Bantal UC207 |
| Tipe segel | Z; ZZ; RS; 2RS |
| Izin | C0, C2, C3, C4, C5 |
| Tingkat Getaran | V1; V2; V3 |
| Tingkat kebisingan | Z1; Z2; Z3 |
| Rating presisi | ABEC1 (P0) / ABEC3 (P6) / ABEC5 (P5) / ABEC7 (P4) |
| Bahan | Chrome Steel, Baja Karbon, Stainless steel |
| Bahan kandang | Nilon, teel S , B rass |
| Layanan | (1) pengiriman cepat |
| (2) OEM | |
| (3) Pelayanan yang Baik | |
| (4) Label Pembeli yang Ditawarkan | |
| (5) Sampel gratis |
