Tempat asal:
Cina
Nama merek:
ZH
Sertifikasi:
ISO
Nomor model:
M600 HX80M

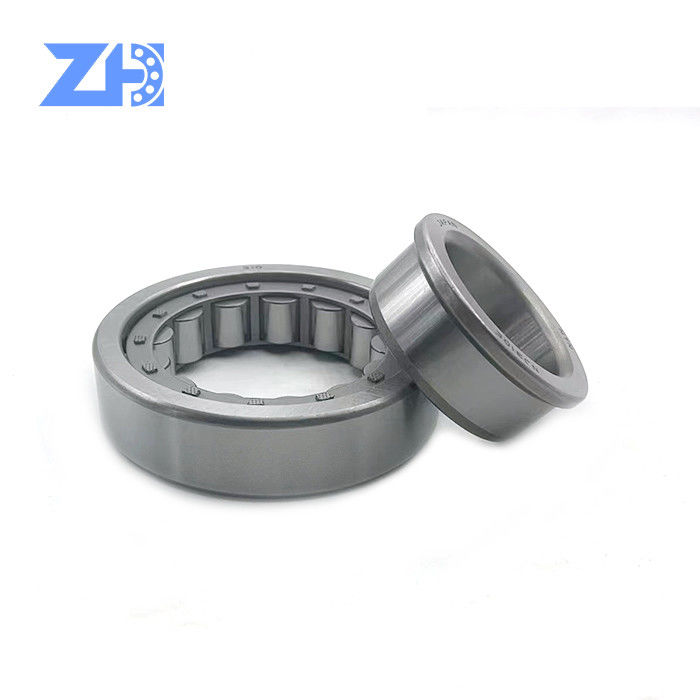

NJ310E Bantalan Rol Silinder N310 NF310 Nj310 Nj310e Nj310n Nu310 Nup310 Nup310nv Nup310env/C3 Ncl310
Baja Chrome NJ310E NF310 Nj310 Nj310e Nj310n Nu310 Nup310 Nup310nv Nup310env/C3 Ncl310 Bantalan Rol Silinder
Deskripsi Produk
Bantalan rol silinder biasanya dapat dipisahkan dan mudah dipasang dan dilepas.Mereka dapat dibagi menjadi bantalan rol silinder baris tunggal, baris ganda dan multi-baris.Bantalan yang banyak digunakan adalah bantalan rol silinder dengan sangkar.Kandang baja tekan atau kuningan mesin umumnya digunakan, tetapi kadang-kadang kandang poliamida cetakan juga digunakan.Ada bantalan baris tunggal atau ganda dengan rol lengkap dan pengaturan bantalan lainnya.Bantalan rol silinder memiliki daya dukung beban radial yang tinggi dan juga cocok untuk kecepatan tinggi.
| Nomor model | Seri NU1000, seri NU200, seri NU2200, seri NU300, seri NU2300, seri NJ1000, seri NJ200, |
| Seri NJ2200, Seri NJ300, Seri NJ2300, Seri NUP1000, Seri NUP200, Seri NUP2300, | |
| Seri N1000, Seri N200, Seri N2200, Seri N300, Seri N2300, Seri NF200, Seri NF300, | |
| Seri RNU200, Seri RNU300, Seri RN200, Seri RN300 | |
| Jenis | bantalan rol silinder. |
| Jumlah Baris | baris tunggal. |
| Bahan | baja krom tertinggi 100Cr6. |
| Bahan Kandang | baja, kuningan, nilon. |
| Kekerasan | HRC 60-64. |
| Peringkat Presisi | P0, P6, P5. |
| Izin Radial | C0, C2, C3, C4, C5. |
| Jenis Penyegelan | tidak ada. |
| Akhiran tersedia | E, M, EM, ECP, ECM, ETVP2, C3, C4, C5 dll. |
| Gemuk | sesuai kebutuhan Anda, seperti Chevron SRI-2, Multemp PS2, Shell Alvania R2, Changcheng 2 dan seterusnya. |
| Sertifikasi | ISO 9001:2008. |
| Tanda | ZH ATAU PELANGGAN |
| Kemasan | paket kotak tunggal, paket gulungan industri atau sesuai kebutuhan pembeli. |
| Tempat asal | Tiongkok (Daratan). |
| Fitur | (1) presisi tinggi; |
| (2) kecepatan tinggi; | |
| (3) daya dukung beban tinggi; | |
| (4) kebisingan rendah; | |
| (5) umur panjang. | |
| Aplikasi | motor listrik, kendaraan, spindel alat mesin, motor pembakaran, turbin gas, gearbox, mesin bergulir, |
| layar berosilasi, crane dll. | |
| Jangka waktu pembayaran | Deposit 30%, 70% dibayar oleh TT atau L/C atau Western Union. |
| Waktu pengiriman | ready stock, langsung kirim. |
| Pelabuhan Pengiriman | Shanghai, Tianjin atau Qingdao. |
| Sampel | sampel gratis tersedia. |
| Bantalan No. | Dimensi batas | Peringkat beban dasar (kN) | Membatasi kecepatan | Massa | ||||||
| mm | Dinamis | Statis | rpm | Kg | ||||||
| D | D | B | rs min | rs1 mnt | Kr | Kor | Gemuk | Minyak | ||
| NJ304E | 20 | 52 | 15 | 1.1 | 0,6 | 31.5 | 26.9 | 13.000 | 15.000 | 0,176 |
| NJ305E | 25 | 62 | 17 | 1.1 | 1.1 | 41.5 | 37.5 | 11.000 | 13.000 | 0,275 |
| NJ306E | 30 | 72 | 19 | 1.1 | 1.1 | 53 | 50 | 9.300 | 11.000 | 0,398 |
| NJ307E | 35 | 80 | 21 | 1.5 | 1.1 | 71 | 71 | 8.100 | 9.600 | 0,545 |
| NJ308 | 40 | 90 | 23 | 1.5 | 1.5 | 58.5 | 57 | 8.000 | 9.400 | 0,658 |
| NJ308E | 40 | 90 | 23 | 1.5 | 1.5 | 83 | 81.5 | 7.200 | 8.500 | 0,754 |
| NJ309 | 45 | 100 | 25 | 1.5 | 1.5 | 74 | 71 | 7.200 | 8.400 | 0,877 |
| NJ309E | 45 | 100 | 25 | 1.5 | 1.5 | 97.5 | 98.5 | 6.500 | 7.600 | 0,996 |
| NJ310 | 50 | 110 | 27 | 2 | 2 | 87 | 86 | 6.500 | 7.700 | 1.14 |
| NJ310E | 50 | 110 | 27 | 2 | 2 | 110 | 113 | 5.900 | 6.900 | 1.3 |
| NJ311 | 55 | 120 | 29 | 2 | 2 | 111 | 111 | 5.900 | 7.000 | 1.45 |
| NJ311E | 55 | 120 | 29 | 2 | 2 | 137 | 143 | 5.300 | 6.300 | 1.65 |
| NJ312 | 60 | 130 | 31 | 2.1 | 2.1 | 124 | 126 | 5.500 | 6.500 | 1.8 |
| NJ312E | 60 | 130 | 31 | 2.1 | 2.1 | 150 | 157 | 4.900 | 5.800 | 2.05 |
| NJ313 | 65 | 140 | 33 | 2.1 | 2.1 | 135 | 139 | 5.100 | 6.000 | 2.23 |
| NJ313E | 65 | 140 | 33 | 2.1 | 2.1 | 181 | 191 | 4.600 | 5.400 | 2.54 |
| NJ314 | 70 | 150 | 35 | 2.1 | 2.1 | 158 | 168 | 4.700 | 5.500 | 2.71 |
| NJ314E | 70 | 150 | 35 | 2.1 | 2.1 | 205 | 222 | 4.200 | 5.000 | 3.1 |
| NJ315 | 75 | 160 | 37 | 2.1 | 2.1 | 190 | 205 | 4.400 | 5.200 | 3.28 |
| NJ315E | 75 | 160 | 37 | 2.1 | 2.1 | 240 | 263 | 4.000 | 4.700 | 3.74 |
| NJ316 | 80 | 170 | 39 | 2.1 | 2.1 | 190 | 207 | 4.100 | 4.800 | 3.86 |
| NJ316E | 80 | 170 | 39 | 2.1 | 2.1 | 256 | 282 | 3.700 | 4.400 | 4.22 |
| NJ317 | 85 | 180 | 41 | 3 | 3 | 212 | 228 | 3.900 | 4.600 | 4.54 |
| NJ317E | 85 | 180 | 41 | 3 | 3 | 291 | 330 | 3.500 | 4.100 | 4.81 |
| NJ318 | 90 | 190 | 43 | 3 | 3 | 240 | 265 | 3.700 | 4.300 | 5.3 |
| NJ318E | 90 | 190 | 43 | 3 | 3 | 315 | 355 | 3.300 | 3.900 | 5.72 |
| NJ319 | 95 | 200 | 45 | 3 | 3 | 259 | 285 | 3.400 | 4.000 | 6.13 |
| NJ319E | 95 | 200 | 45 | 3 | 3 | 335 | 385 | 3.100 | 3.600 | 6.62 |
| NJ320 | 100 | 215 | 47 | 3 | 3 | 299 | 335 | 3.300 | 3.800 | 7.49 |
| NJ320E | 100 | 215 | 47 | 3 | 3 | 380 | 425 | 2.900 | 3.500 | 8.57 |
| NJ321 | 105 | 225 | 49 | 3 | 3 | 320 | 360 | 3.100 | 3.700 | 8.53 |
| NJ322 | 110 | 240 | 50 | 3 | 3 | 360 | 400 | 3.000 | 3.500 | 10 |
| NJ322E | 110 | 240 | 50 | 3 | 3 | 450 | 525 | 2.700 | 3.100 | 11.1 |
| NJ324 | 120 | 260 | 55 | 3 | 3 | 450 | 510 | 2.700 | 3.200 | 12.8 |
| NJ324E | 120 | 260 | 55 | 3 | 3 | 530 | 610 | 2.400 | 2.800 | 13.9 |
| NJ326 | 130 | 280 | 58 | 4 | 4 | 560 | 665 | 2.500 | 2.900 | 17.4 |
| NJ326E | 130 | 280 | 58 | 4 | 4 | 615 | 735 | 2.200 | 2.600 | 19.4 |
| NJ328 | 140 | 300 | 62 | 4 | 4 | 615 | 745 | 2.300 | 2.700 | 21.2 |
| NJ328E | 140 | 300 | 62 | 4 | 4 | 665 | 795 | 2.100 | 2.400 | 23.2 |
| NJ330 | 150 | 320 | 65 | 4 | 4 | 665 | 805 | 2.100 | 2.500 | 25.3 |
| NJ330E | 150 | 320 | 65 | 4 | 4 | 760 | 920 | 1.900 | 2.300 | 28.4 |
Deskripsi Produk:
Bantalan rol silinder dapat dipisahkan.Karena rolnya bersentuhan secara linier dengan cincin bagian dalam dan cincin orter dengan koefisien gesekan yang lebih kecil, bantalan ini memiliki kapasitas beban radial yang sangat baik, cocok untuk meteran listrik, mobil, poros transmisi, poros roda gigi, dan sebagainya.Bantalan rol silinder dua baris bagus untuk spindel peralatan mesin.
Spesifikasi:
| Merek | ZH atau Semua Impor merek terkenal | |
| Nama | Bantalan rol silinder | |
| Model | N, NU, NJ, NF, NUP, NN, NNU, FCD, FCDP, NNCF, NNF, SL dll | |
| Bahan | GCr15SiMn, GCr15, G20Cr2Ni4,9Cr18 | |
| Sertifikat | ISO9001:2008 | |
| Presisi | P0, P6, P5, P4, P2 | |
| Ukuran ID: | 35mm-1280mm | |
| Izin | C0,C1,C2,C3,C4,C5 dst. | |
| Tipe Segel | RS, 2RS, Z, 2Z, 2RZ dll | |
| Beban Tetapan Dasar (KN) | A. Dinamis: | 8.35-1488- |
| B. Statis: | 5.5-2480- | |
| Batasi Kecepatan (r/mnt) | A. Gemuk | 15000-2480- |
| Mendidihkan | 19000-700- | |
| Fitur | Harga rendah, kecepatan tinggi, umur panjang | |
| Aplikasi | banyak digunakan dalam mobil, peralatan listrik, instrumen, mesin bangunan, mesin pertanian rolling stock dan berbagai mesin khusus, aplikasi spindel mesin dan digunakan untuk pabrik dingin dan panas. | |
| Waktu Pengiriman | 2-5 hari | |
| Kemasan | paket papan kartu, palet, kotak kayu atau sesuai dengan kebutuhan pelanggan | |
| Harga | FOB, CIF | |
| TIDAK. | Jenis | BD | OD | Lebar | Berat | |||
| N | NF | NJ | NUP | (mm) | (mm) | (mm) | (kg) | |
| NU204E | N204E | NF204E | NJ204E | NUP204E | 20 | 47 | 14 | 0,117 |
| NU2204E | N2204E | NF2204E | NJ2204E | NUP2204E | 20 | 47 | 18 | 0,149 |
| NU2304E | N2304E | NF2304E | NJ2304E | NUP2304E | 20 | 52 | 21 | 0,216 |
| NU205E | N205E | NF205E | NJ205E | NUP205E | 25 | 52 | 15 | 0,14 |
| NU2205E | N2205E | NF2205E | NJ2205E | NUP2205E | 25 | 52 | 18 | 0,168 |
| NU2305E | N2305E | NF2305E | NJ2305E | NUP2305E | 25 | 62 | 24 | 0,355 |
| NU206E | N206E | NF206E | NJ206E | NUP206E | 30 | 62 | 16 | 0,214 |
| NU2206E | N2206E | NF2206E | NJ2206E | NUP2206E | 30 | 62 | 20 | 0,268 |
| NU2306E | N2306E | NF2306E | NJ2306E | NUP2306E | 30 | 72 | 27 | 0,538 |
| NU207E | N207E | NF207E | NJ207E | NUP207E | 35 | 72 | 17 | 0,311 |
| NU2207E | N2207E | NF2207E | NJ2207E | NUP2207E | 35 | 72 | 23 | 0,414 |
| NU2307E | N2307E | NF2307E | NJ2307E | NUP2307E | 35 | 80 | 31 | 0,738 |
| NU208E | N208E | NF208E | NJ208E | NUP208E | 40 | 80 | 18 | 0,394 |
| NU2208E | N2208E | NF2208E | NJ2208E | NUP2208E | 40 | 80 | 23 | 0,507 |
| NU2308E | N2308E | NF2308E | NJ2308E | NUP2308E | 40 | 90 | 33 | 0,974 |
| NU209E | N209E | NF209E | NJ209E | NUP209E | 45 | 85 | 19 | 0,45 |
| NU2209E | N2209E | NF2209E | NJ2209E | NUP2209E | 45 | 85 | 23 | 0,55 |
| NU2309E | N2309E | NF2309E | NJ2309E | NUP2309E | 45 | 100 | 36 | 1.34 |
| NU210E | N210E | NF210E | NJ210E | NUP210E | 50 | 90 | 20 | 0,505 |
| NU2210E | N2210E | NF2210E | NJ2210E | NUP2210E | 50 | 90 | 23 | 0,59 |
| NU2310E | N2310E | NF2310E | NJ2310E | NUP2310E | 50 | 110 | 40 | 1.79 |
| NU211E | N211E | NF211E | NJ211E | NUP211E | 55 | 100 | 21 | 0,68 |
| NU2311E | N2311E | NF2311E | NJ2311E | NUP2311E | 55 | 120 | 43 | 2.28 |
| NU212E | N212E | NF212E | NJ212E | NUP212E | 60 | 110 | 22 | 0,86 |
| NU2212E | N2212E | NF2212E | NJ2212E | NUP2212E | 60 | 110 | 28 | 1.12 |
| NU2312E | N2312E | NF2312E | NJ2312E | NUP2312E | 60 | 130 | 46 | 2.81 |
| NU213E | N213E | NF213E | NJ213E | NUP213E | 65 | 120 | 23 | 1.08 |
| NU2213E | N2213E | NF2213E | NJ2213E | NUP2213E | 65 | 120 | 31 | 1.48 |
| NU2313E | N2313E | NF2313E | NJ2313E | NUP2313E | 65 | 140 | 48 | 3.34 |
| NU214E | N214E | NF214E | NJ214E | NUP214E | 70 | 125 | 24 | 1.2 |
| NU2214E | N2214E | NF2214E | NJ2214E | NUP2214E | 70 | 125 | 31 | 1.56 |
| NU2314E | N2314E | NF2314E | NJ2314E | NUP2314E | 70 | 150 | 51 | 4.1 |
| NU215E | N215E | NF215E | NJ215E | NUP215E | 75 | 130 | 25 | 1.32 |
| NU2215E | N2215E | NF2215E | NJ2215E | NUP2215E | 75 | 130 | 31 | 1.64 |
| NU2315 | N2315 | NF2315 | NJ2315 | NUP2315 | 75 | 160 | 55 | 5.4 |
| NU216E | N216E | NF216E | NJ216E | NUP216E | 80 | 140 | 26 | 1.58 |
| NU2216E | N2216E | NF2216E | NJ2216E | NUP2216E | 80 | 140 | 33 | 2.05 |
| NU2316 | N2316 | NF2316 | NJ2316 | NUP2316 | 80 | 170 | 58 | 6.4 |
| NU217E | N217E | NF217E | NJ217E | NUP217E | 85 | 150 | 28 | 2 |
| NU2217E | N2217E | NF2217E | NJ2217E | NUP2217E | 85 | 150 | 36 | 2.58 |
| NU2317 | N2317 | NF2317 | NJ2317 | NUP2317 | 85 | 180 | 60 | 7.4 |
| NU218E | N218E | NF218E | NJ218E | NUP218E | 90 | 160 | 30 | 2.44 |
| NU2218E | N2218E | NF2218E | NJ2218E | NUP2218E | 90 | 160 | 40 | 3.26 |
| NU2318 | N2318 | NF2318 | NJ2318 | NUP2318 | 90 | 190 | 64 | 8.4 |
| NU219E | N219E | NF219E | NJ219E | NUP219E | 95 | 170 | 32 | 2.96 |
| NU2219E | N2219E | NF2219E | NJ2219E | NUP2219E | 95 | 170 | 43 | 3.97 |
| NU2319 | N2319 | NF2319 | NJ2319 | NUP2319 | 95 | 200 | 67 | 10.4 |
| NU220E | N220E | NF220E | NJ220E | NUP220E | 100 | 180 | 34 | 3.58 |
| NU2220E | N2220E | NF2220E | NJ2220E | NUP2220E | 100 | 180 | 46 | 4.86 |
| NU2320 | N2320 | NF2320 | NJ2320 | NUP2320 | 100 | 215 | 73 | 13.5 |
| NU221 | N221 | NF221 | NJ221 | NUP221 | 105 | 190 | 36 | 4 |
| NU222E | N222E | NF222E | NJ222E | NUP222E | 110 | 200 | 38 | 5.02 |
| NU2222 | N2222 | NF2222 | NJ2222 | NUP2222 | 110 | 200 | 53 | 7.5 |
| NU2322 | N2322 | NF2322 | NJ2322 | NUP2322 | 110 | 240 | 80 | 17.5 |
| NU224E | N224E | NF224E | NJ224E | NUP224E | 120 | 215 | 40 | 6.11 |
| NU2224 | N2224 | NF2224 | NJ2224 | NUP2224 | 120 | 215 | 58 | 9.5 |
| NU2324 | N2324 | NF2324 | NJ2324 | NUP2324 | 120 | 260 | 86 | 22.5 |
| NU226 | N226 | NF226 | NJ226 | NUP226 | 130 | 230 | 40 | 7 |
| NU2226 | N2226 | NF2226 | NJ2226 | NUP2226 | 130 | 230 | 64 | 11.5 |
| NU2326 | N2326 | NF2326 | NJ2326 | NUP2326 | 130 | 280 | 93 | 28.5 |
| NU228 | N228 | NF228 | NJ228 | NUP228 | 140 | 250 | 42 | 9.1 |
| NU2228 | N2228 | NF2228 | NJ2228 | NUP2228 | 140 | 250 | 68 | 15 |
| NU2328 | N2328 | NF2328 | NJ2328 | NUP2328 | 140 | 300 | 102 | 37 |
| NU230 | N230 | NF230 | NJ230 | NUP230 | 150 | 270 | 45 | 11 |
| NU2230 | N2230 | NF2230 | NJ2230 | NUP2230 | 150 | 270 | 73 | 17 |
| NU2330 | N2330 | NF2330 | NJ2330 | NUP2330 | 150 | 320 | 108 | 45 |
| NU232 | N232 | NF232 | NJ232 | NUP232 | 160 | 290 | 48 | 14 |
| NU2232 | N2232 | NF2232 | NJ2232 | NUP2232 | 160 | 290 | 80 | 25 |
| NU2332 | N2332 | NF2332 | NJ2332 | NUP2332 | 160 | 340 | 114 | 55.8 |
| NU234 | N234 | NF234 | NJ234 | NUP234 | 170 | 310 | 52 | 17.1 |
| NU2334 | N2334 | NF2334 | NJ2334 | NUP2334 | 170 | 360 | 120 | 63 |
| NU238 | N238 | NF238 | NJ238 | NUP238 | 190 | 340 | 55 | 23 |
| NU203M | N203M | NF203M | NJ203M | NUP203M | 17 | 40 | 12 | 0,08 |
| NU204M | N204M | NF204M | NJ204M | NUP204M | 20 | 47 | 14 | 0,133 |
| NU205M | N205M | NF205M | NJ205M | NUP205M | 25 | 52 | 15 | 0,155 |
| NU206M | N206M | NF206M | NJ206M | NUP206M | 30 | 62 | 16 | 0,24 |
| NU207M | N207M | NF207M | NJ207M | NUP207M | 35 | 72 | 17 | 0,344 |
| NU208M | N208M | NF208M | NJ208M | NUP208M | 40 | 80 | 18 | 0,439 |
| NU209M | N209M | NF209M | NJ209M | NUP209M | 45 | 85 | 19 | 0,523 |
| NU210M | N210M | NF210M | NJ210M | NUP210M | 50 | 90 | 20 | 0,578 |
| NU211M | N211M | NF211M | NJ211M | NUP211M | 55 | 100 | 21 | 0,691 |
| NU212M | N212M | NF212M | NJ212M | NUP212M | 60 | 110 | 22 | 0,95 |
| NU213M | N213M | NF213M | NJ213M | NUP213M | 65 | 120 | 23 | 1.16 |
| NU214M | N214M | NF214M | NJ214M | NUP214M | 70 | 125 | 24 | 1.34 |
| NU215M | N215M | NF215M | NJ215M | NUP215M | 75 | 130 | 25 | 1.4 |
| NU216M | N216M | NF216M | NJ216M | NUP216M | 80 | 140 | 26 | 1.76 |
| NU217M | N217M | NF217M | NJ217M | NUP217M | 85 | 150 | 28 | 2 |
| NU222M | N222M | NF222M | NJ222M | NUP222M | 110 | 200 | 38 | 5.11 |
| NU224M | N224M | NF224M | NJ224M | NUP224M | 120 | 215 | 40 | 6.47 |
| NU226M | N226M | NF226M | NJ226M | NUP226M | 130 | 230 | 40 | 7.34 |
| NU226E | N226E | NF226E | NJ226E | NUP226E | 130 | 230 | 40 | 7.26 |
| NU228M | N228M | NF228M | NJ228M | NUP228M | 140 | 250 | 42 | 9.1 |
| NU230M | N230M | NF230M | NJ230M | NUP230M | 150 | 270 | 45 | 11.7 |
| NU230E | N230E | NF230E | NJ230E | NUP230E | 150 | 270 | 45 | 11.2 |
| NU232M | N232M | NF232M | NJ232M | NUP232M | 160 | 290 | 48 | 14.2 |
| NU234M | N234M | NF234M | NJ234M | NUP234M | 170 | 310 | 52 | 18 |
| NU236M | N236M | NF236M | NJ236M | NUP236M | 180 | 320 | 52 | 19.6 |
| NU238M | N238M | NF238M | NJ238M | NUP238M | 190 | 340 | 55 | 22.6 |
| NU244M | N244M | NF244M | NJ244M | NUP244M | 220 | 400 | 65 | 38.9 |
| NU248M | N248M | NF248M | NJ248M | NUP248M | 240 | 440 | 72 | 48.2 |
| NU252M | N252M | NF252M | NJ252M | NUP252M | 260 | 480 | 80 | 70.3 |
| NU260M | N260M | NF260M | NJ260M | NUP260M | 300 | 540 | 85 | 87.2 |
| NU2206M | N2206M | NF2206M | NJ2206M | NUP2206M | 30 | 62 | 20 | 0,26 |
| NU2207M | N2207M | NF2207M | NJ2207M | NUP2207M | 35 | 72 | 23 | 0,4 |
| NU2208M | N2208M | NF2208M | NJ2208M | NUP2208M | 40 | 80 | 23 | 0,53 |
| NU2209M | N2209M | NF2209M | NJ2209M | NUP2209M | 45 | 85 | 23 | 0,54 |
| NU2210M | N2210M | NF2210M | NJ2210M | NUP2210M | 50 | 90 | 23 | 0,589 |
| NU2211M | N2211M | NF2211M | NJ2211M | NUP2211M | 55 | 100 | 25 | 0,773 |
| NU2212M | N2212M | NF2212M | NJ2212M | NUP2212M | 60 | 110 | 28 | 0,773 |
| NU2218M | N2218M | NF2218M | NJ2218M | NUP2218M | 90 | 160 | 40 | 3.68 |
Kirim pertanyaan Anda langsung ke kami
