Tempat asal:
Cina
Nama merek:
Z&H
Nomor model:
30211

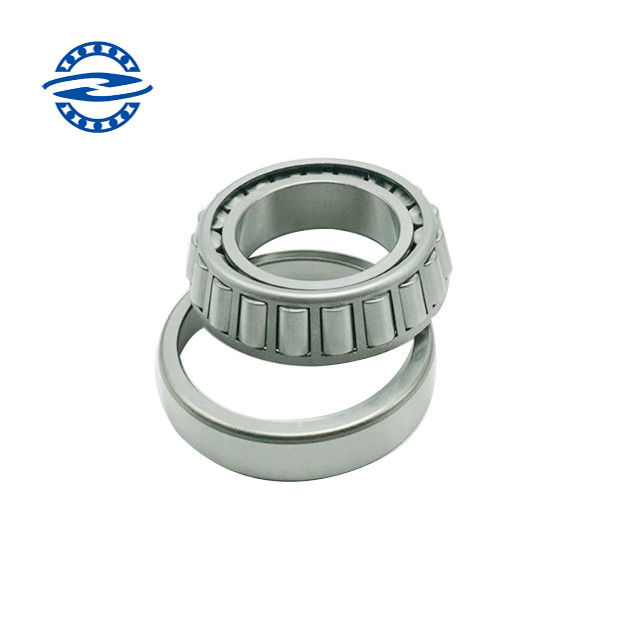

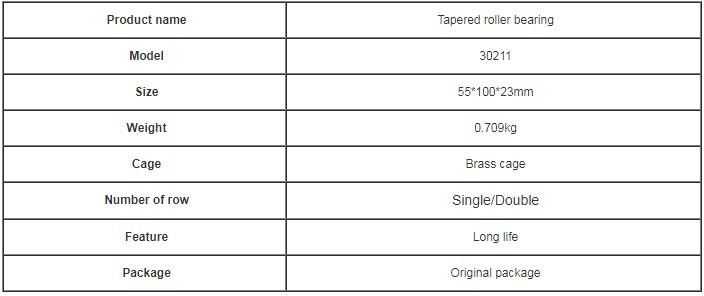

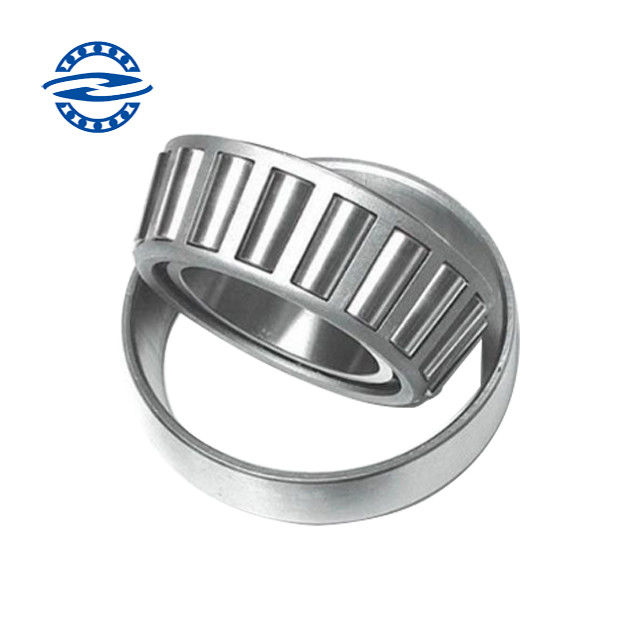

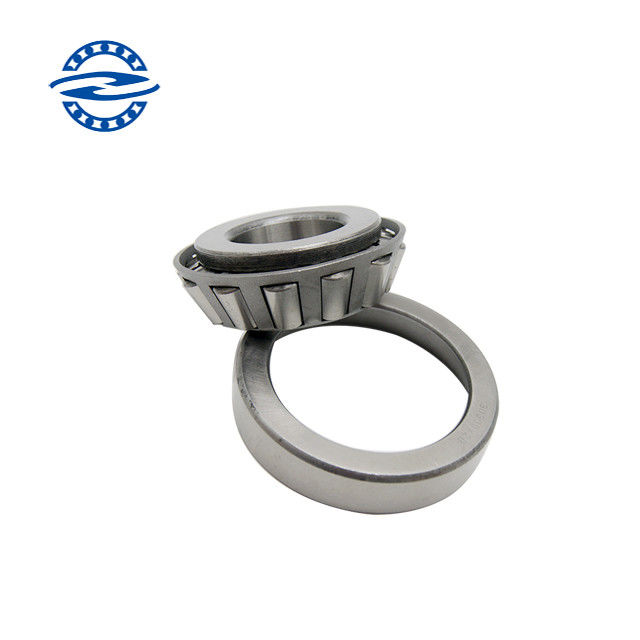

Taper Roller Bearing 30211 Ukuran 55*100*22.75mm Berat 0.7KG
a. Bantalan rol tirus dirakit melalui elemen bergulir.Dipandu oleh dinding samping cincin bagian dalam, dapat menanggung beban radial dan beban aksial dalam satu arah.
b.Sebagai semacam bantalan dorong, produk ini banyak diterapkan pada diferensial mobil, roda depan, roda belakang, peralatan mesin, gandar, mesin konstruksi, berbagai sistem transmisi kendaraan, mesin pengangkat dan pengangkut, dan banyak lagi.
Model lainnya
| Ukuran (mm) |
Peringkat beban dasar (kN) |
Kerucut | cangkir | Massa (kg) |
bantalan no. | ||||||
| D | D | T | Cr | Cor | B | R | C | R | (Perkiraan.) | TIDAK | ISO 355 |
| 17 | 40 | 13.25 | 20.5 | 20.3 | 12 | 1 | 11 | 1 | 0,08 | 30203 | T2DB017 |
| 20 | 47 | 15.25 | 28.2 | 28.7 | 14 | 1 | 12 | 1 | 0,127 | 30204 | T2DB020 |
| 30 | 72 | 20,75 | 48.5 | 51.5 | 19 | 1.5 | 14 | 1.5 | 0,398 | 31306 | T7FB030 |
| 35 | 80 | 22.75 | 63.5 | 70.0 | 21 | 2 | 15 | 1.5 | 0,530 | 31307 | T7FB035 |
| 40 | 90 | 25.25 | 77.0 | 85.5 | 23 | 2 | 17 | 1.5 | 0,738 | 31308 | T7FB040 |
| 55 | 120 | 31.5 | 132 | 154 | 29 | 2.5 | 21 | 2 | 1.59 | 31311 | T7FB055 |
| 65 | 140 | 36 | 173 | 204 | 33 | 3 | 23 | 2.5 | 2.42 | 31313 | T7GB065 |
| 70 | 150 | 38 | 193 | 229 | 35 | 3 | 25 | 2.5 | 2.92 | 31314 | T7GB070 |
| 75 | 160 | 40 | 215 | 256 | 37 | 3 | 26 | 2.5 | 3.47 | 31315 | T7GB075 |
| 80 | 170 | 42,5 | 236 | 283 | 39 | 3 | 27 | 2.5 | 4.11 | 31316 | T7GB080 |
| 85 | 180 | 44.5 | 247 | 293 | 41 | 4 | 28 | 3 | 4.85 | 31317 | T7GB085 |
| 90 | 190 | 46,5 | 270 | 320 | 43 | 4 | 30 | 3 | 5.66 | 31318 | T7GB090 |
| 95 | 200 | 49.5 | 296 | 355 | 45 | 4 | 32 | 3 | 6.47 | 31319 | T7GB095 |
| 100 | 215 | 56,5 | 355 | 435 | 51 | 4 | 35 | 3 | 8.67 | 31320 | T7GB100 |
| 17 | 40 | 17.25 | 27.3 | 28.3 | 16 | 1 | 14 | 1 | 0.102 | 32203 | T2DD017 |
| 20 | 47 | 19.25 | 36,5 | 39.5 | 18 | 1 | 15 | 1 | 0.16 | 32204 | |
| 25 | 52 | 19.25 | 42.0 | 47.0 | 18 | 1 | 16 | 1 | 0,187 | 32205 | T2CD025 |
| 30 | 62 | 21.25 | 54.5 | 64.0 | 20 | 1 | 17 | 1 | 0.301 | 32206 | T3DC030 |
| 35 | 72 | 24.25 | 72,5 | 87.0 | 23 | 1.5 | 19 | 1.5 | 0,457 | 32207 | T3DC035 |
| 40 | 80 | 24,75 | 79.5 | 93.5 | 23 | 1.5 | 19 | 1.5 | 0,558 | 32208 | T3DC040 |
| 45 | 85 | 24,75 | 82.0 | 100 | 23 | 1.5 | 19 | 1.5 | 0,607 | 32209 | T3DC045 |
| 50 | 90 | 24,75 | 87,5 | 109 | 23 | 1.5 | 19 | 1.5 | 0,648 | 32210 | T3DC050 |
| 55 | 100 | 26.75 | 108 | 134 | 25 | 2 | 21 | 1.5 | 0.876 | 32211 | T3DC055 |
| 60 | 110 | 29,75 | 130 | 164 | 28 | 2 | 24 | 1.5 | 1.18 | 32212 | T3EC060 |
| 65 | 120 | 32.75 | 159 | 206 | 31 | 2 | 27 | 1.5 | 1.58 | 32213 | T3EC065 |
| 70 | 125 | 33.25 | 166 | 220 | 31 | 2 | 27 | 1.5 | 1.68 | 32214 | T3EC070 |
| 75 | 130 | 33.25 | 168 | 224 | 31 | 2 | 27 | 1.5 | 1.74 | 32215 | T4DC075 |
| 80 | 140 | 35.25 | 199 | 265 | 33 | 2.5 | 28 | 2 | 2.18 | 32216 | T3EC080 |
| 85 | 150 | 38.5 | 224 | 300 | 36 | 2.5 | 30 | 2 | 2.75 | 32217 | T3EC085 |
| 90 | 160 | 42,5 | 262 | 360 | 40 | 2.5 | 34 | 2 | 3.49 | 32218 | T3FC090 |
| 95 | 170 | 45.5 | 299 | 415 | 43 | 3 | 37 | 2.5 | 4.3 | 32219 | T3FC095 |
| 100 | 180 | 49 | 330 | 465 | 46 | 3 | 39 | 2.5 | 5.12 | 32220 | T3FC100 |
| 32 | 75 | 29,75 | 84.0 | 102 | 28 | 1.5 | 23 | 1.5 | 0,659 | 323/32X | |
| 20 | 52 | 22.25 | 46,5 | 48.5 | 21 | 1.5 | 18 | 1.5 | 0.245 | 32304 | T2FD020 |
| 25 | 62 | 25.25 | 61.5 | 64.5 | 24 | 1.5 | 20 | 1.5 | 0.381 | 32305 | T2FD025 |
| 30 | 72 | 28.75 | 81.0 | 90.0 | 27 | 1.5 | 23 | 1.5 | 0,583 | 32306 | T2FD030 |
| 35 | 80 | 32.75 | 101 | 115 | 31 | 2 | 25 | 1.5 | 0,787 | 32307 | T2EE035 |
| 40 | 90 | 35.25 | 122 | 150 | 33 | 2 | 27 | 1.5 | 1.08 | 32308 | T2FD040 |
| 45 | 100 | 38.25 | 154 | 191 | 36 | 2 | 30 | 1.5 | 1.46 | 32309 | T2FD045 |
| 50 | 110 | 42.25 | 184 | 232 | 40 | 2.5 | 33 | 2 | 1.92 | 32310 | T2FD050 |
| 55 | 120 | 45.5 | 215 | 275 | 43 | 2.5 | 35 | 2 | 2.44 | 32311 | T2FD055 |
| 60 | 130 | 48.5 | 244 | 315 | 46 | 3 | 37 | 2.5 | 3.02 | 32312 | T2FD060 |
| 65 | 140 | 51 | 273 | 350 | 48 | 3 | 39 | 2.5 | 3.66 | 32313 | T2GD065 |
| 70 | 150 | 54 | 310 | 405 | 51 | 3 | 42 | 2.5 | 4.46 | 32314 | T2GD070 |
| 75 | 160 | 58 | 355 | 470 | 55 | 3 | 45 | 2.5 | 5.35 | 32315 | T2GD075 |
| 80 | 170 | 61.5 | 395 | 525 | 58 | 3 | 48 | 2.5 | 6.41 | 32316 | T2GD080 |
| 85 | 180 | 63.5 | 405 | 525 | 60 | 4 | 49 | 3 | 7.15 | 32317 | T2GD085 |
| 90 | 190 | 67.5 | 450 | 595 | 64 | 4 | 53 | 3 | 8.57 | 32318 | T2GD090 |
| 95 | 200 | 71.5 | 505 | 670 | 67 | 4 | 55 | 3 | 10.1 | 32319 | T2GD095 |
| 100 | 215 | 77.5 | 570 | 770 | 73 | 4 | 60 | 3 | 12,7 | 32320 | T2GD100 |
1 .Kemasan Netral: Kantong plastik putih / karton luar / palet
2 .Kemasan merek ZH: Kantong plastik ZH / karton luar / Pallet
T: Apakah Anda seorang pedagang atau produsen?
A: Kami adalah pabrik yang mengkhususkan diri dalam semua jenis bantalan.Kami dapat memberikan harga terbaik dan layanan yang lebih baik.
T: Apa waktu pengiriman Anda?
A: Pesanan sampel: Pengiriman segera, pesanan massal: biasanya 30 hari.
T: Dapatkah saya meminta sampel?
A: Tentu saja, sampel tidak apa-apa dan kami dapat memberi Anda sampel secara gratis.
T: Apa cara pengirimannya?
A: Sesuai dengan tuntutan ANDA.
