Tempat asal:
Cina
Nama merek:
ZH
Sertifikasi:
ISO
Nomor model:
C6.4

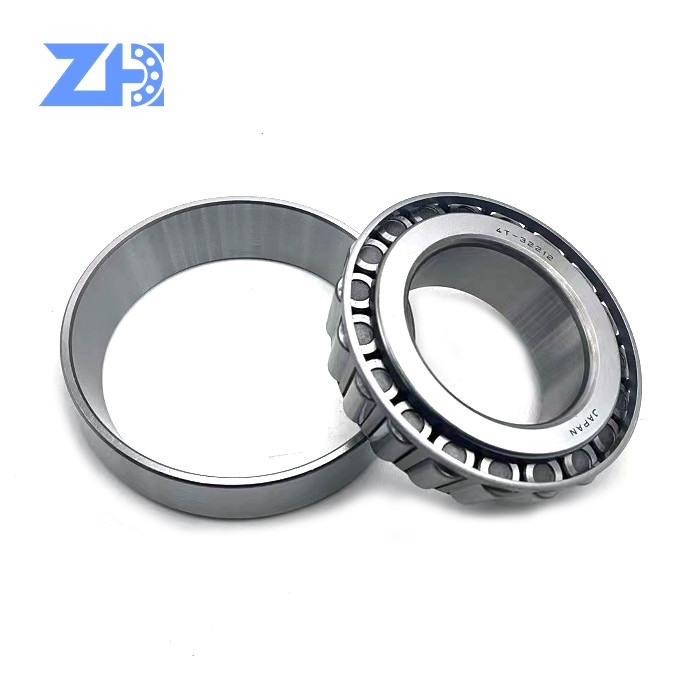

32200 series TAPERED ROLLER BEARING 32212-A Bantalan Roda Truk 32212 7512e Auto Bearing Tapered Roller Bearing
Peringkat Presisi: P0, P6, P5, P4, P2
Bahan: Bantalan baja
Waktu pengiriman: 3-15days
Fungsi: : Rolling mill, tambang, metalurgi, industri mesin plastik.
Macam-macam bantalan rol tirus dan modelnya
Bantalan rol tirus baris tunggal metrik
Inci bantalan rol tirus baris tunggal
Bantalan rol tirus dua baris
Bantalan rol tirus empat baris
Sepasang bantalan rol tper baris tunggal
| dimensi batas (mm) | peringkat beban dasar (kn) | membatasi kecepatan (rpm) | bantalan no. | ||||||
| D | D | T | R | r1 | cr | kor | pelumas gemuk. | pelumas minyak. | |
| min. | min. | ||||||||
| 45 | 75 | 20 | 1 | 1 | 62.8 | 86.5 | 5000 | 6600 | 32009 |
| 45 | 75 | 24 | 1 | 1 | 69.6 | 101 | 5000 | 6700 | 33009 |
| 45 | 80 | 26 | 1.5 | 1.5 | 87.5 | 120 | 4800 | 6400 | 33109 |
| 45 | 85 | 20.75 | 1.5 | 1.5 | 67.2 | 77.4 | 4600 | 6100 | 30209 |
| 45 | 85 | 24.75 | 1.5 | 1.5 | 84.2 | 104 | 4600 | 6100 | 32209 |
| 45 | 85 | 32 | 1.5 | 1.5 | 112 | 149 | 4600 | 6200 | 33209 |
| 45 | 100 | 27.25 | 2 | 1.5 | 113 | 128 | 4100 | 5400 | 30309 |
| 45 | 100 | 38.25 | 2 | 1.5 | 146 | 180 | 4100 | 5500 | 32309 |
| 50 | 80 | 20 | 1 | 1 | 65.7 | 94.5 | 4600 | 6100 | 32010 |
| 50 | 80 | 24 | 1 | 1 | 73 | 110 | 4600 | 6100 | 33010 |
| 50 | 85 | 26 | 1.5 | 1.5 | 89.4 | 127 | 4400 | 5900 | 33110 |
| 50 | 90 | 21.75 | 1.5 | 1.5 | 76.5 | 91.7 | 4300 | 5700 | 30210 |
| 50 | 90 | 24.75 | 1.5 | 1.5 | 85 | 105 | 4300 | 5700 | 32210 |
| 50 | 90 | 32 | 1.5 | 1.5 | 119 | 167 | 4300 | 5700 | 33210 |
| 50 | 110 | 29.25 | 2.5 | 2 | 137 | 152 | 3700 | 4900 | 30310 |
| 50 | 110 | 42.25 | 2.5 | 2 | 176 | 220 | 3700 | 5000 | 32310 |
| 55 | 90 | 23 | 1.5 | 1.5 | 84.6 | 121 | 4100 | 5500 | 32011 |
| 55 | 90 | 27 | 1.5 | 1.5 | 96.5 | 145 | 4100 | 5400 | 33011 |
| 55 | 95 | 30 | 1.5 | 1.5 | 116 | 161 | 4000 | 5300 | 33111 |
| 55 | 100 | 22.75 | 2 | 1.5 | 94.6 | 113 | 3900 | 5200 | 30211 |
| 55 | 100 | 26.75 | 2 | 1.5 | 107 | 133 | 3900 | 5200 | 32211 |
| 55 | 100 | 35 | 2 | 1.5 | 142 | 189 | 3900 | 5200 | 33211 |
| 55 | 120 | 31.5 | 2.5 | 2 | 149 | 170 | 3300 | 4500 | 30311 |
| 55 | 120 | 45.5 | 2.5 | 2 | 200 | 250 | 3400 | 4500 | 32311 |
| 60 | 95 | 23 | 1.5 | 1.5 | 86.1 | 127 | 3900 | 5200 | 32012 |
| 60 | 95 | 27 | 1.5 | 1.5 | 101 | 162 | 3900 | 5200 | 33012 |
| 60 | 100 | 30 | 1.5 | 1.5 | 118 | 170 | 3700 | 5000 | 33112 |
| 60 | 110 | 23.75 | 2 | 1.5 | 106 | 127 | 3500 | 4700 | 30212 |
| 60 | 110 | 29.75 | 2 | 1.5 | 132 | 167 | 3500 | 4700 | 32212 |
| 60 | 110 | 38 | 2 | 1.5 | 174 | 239 | 3600 | 4700 | 33212 |
| 60 | 130 | 33.5 | 3 | 2.5 | 173 | 201 | 3100 | 4100 | 30312 |
| 60 | 130 | 48.5 | 3 | 2.5 | 244 | 315 | 3100 | 4200 | 32312 |
| 65 | 100 | 23 | 1.5 | 1.5 | 90 | 137 | 3600 | 4800 | 32013 |
| 65 | 100 | 27 | 1.5 | 1.5 | 103 | 169 | 3600 | 4800 | 33013 |
| 65 | 110 | 34 | 1.5 | 1.5 | 152 | 223 | 3400 | 4600 | 33113 |
| 65 | 120 | 24.75 | 2 | 1.5 | 128 | 156 | 3200 | 4300 | 30213 |
| 65 | 120 | 32.75 | 2 | 1.5 | 157 | 203 | 3200 | 4300 | 32213 |
| 65 | 120 | 41 | 2 | 1.5 | 200 | 277 | 3200 | 4300 | 33213 |
| 65 | 140 | 36 | 3 | 2.5 | 204 | 239 | 2800 | 3800 | 30313 |
| 70 | 110 | 25 | 1.5 | 1.5 | 108 | 163 | 3300 | 4400 | 32014 |
| 70 | 110 | 31 | 1.5 | 1.5 | 134 | 208 | 3300 | 4400 | 33014 |
| 70 | 120 | 37 | 2 | 1.5 | 181 | 266 | 3100 | 4200 | 33114 |
| 70 | 125 | 26.25 | 2 | 1.5 | 138 | 173 | 3100 | 4100 | 30214 |
| 70 | 125 | 33.25 | 2 | 1.5 | 169 | 225 | 3100 | 4100 | 32214 |
| 70 | 125 | 41 | 2 | 1.5 | 206 | 294 | 3100 | 4100 | 33214 |
| 70 | 150 | 38 | 3 | 2.5 | 230 | 273 | 2600 | 3500 | 30314 |
| 70 | 150 | 54 | 3 | 2.5 | 317 | 414 | 2700 | 3600 | 32314 |
| 75 | 115 | 25 | 1.5 | 1.5 | 110 | 169 | 3100 | 4200 | 32015 |
| 75 | 115 | 31 | 1.5 | 1.5 | 141 | 225 | 3200 | 4200 | 33015 |
| 75 | 125 | 37 | 2 | 1.5 | 186 | 280 | 3000 | 4000 | 33115 |
| 75 | 130 | 27.25 | 2 | 1.5 | 142 | 181 | 2900 | 3900 | 30215 |
| 75 | 130 | 33.25 | 2 | 1.5 | 174 | 234 | 2900 | 3900 | 32215 |
| 75 | 130 | 41 | 2 | 1.5 | 212 | 310 | 2900 | 3900 | 33215 |
| 75 | 160 | 40 | 3 | 2.5 | 260 | 311 | 2500 | 3300 | 30315 |
| 75 | 160 | 58 | 3 | 2.5 | 363 | 481 | 2500 | 3300 | 32315 |
| 71425/71751D | HM124649/HM124618XD |
| 936/932CD | 74472/74851CD |
| HH224340/HH224310CD | M224748/M224710DC |
| 37431/37626DC | M224748/M224710D |
| 37431/37626D | L624549/L624514D |
| 71432/71751D | L225842/L225812D |
| H924043/H924010D | M224749/M224710D |
| LM522548/LM522510D | 48282/48220DC |
| LM522549/LM522510DL | 48282/48220D |
| 64433/64700D | 795/792CD |
| 942/932CD | 95475/95927CD |
| 71437/71751D | 48286/48220DC |
| H924045/H924010D | 48286/48220D |
| HH924349/HH924310D | 95491/95927CD |
| L623149/L623110D | HM926745/HM926710D |
| 64450/64700DC | HM127440/HM127415XD |
| 64450/64700D | L225849/L225812D |
| 71450/71751DC | 48290/48220DC |
| 71450/71751D | 48290/48220D |
| 938/932CD | 67388/67322DC |
| HH224346/HH224310CD | 67388/67322D |
| HM926740/HM926710D | 67388/67325D |
| 64452A/64700D | 74500/74851CD |
| HH224349/HH224310CD | 97500/97901D |
| 71453/71751D | HM926747/HM926710DC |
| HM124646/HM124616XD | HM926747/HM926710D |
| HM124646/HM124618XD | 95500/95927CD |
Produk-produk terkait
Kami dapat menyediakan suku cadang berikut:
| OEM | Nomor referensi. |
|
BPW : 02.6405.60.00
DAF : 1602388
FIAT : 26800180
FRUEHAUF : 10500481
IVECO : 1110005
IVECO : 1125573
IVECO : 26800180
MERCEDES-BENZ : 0019812405
MERCEDES-BENZ : 015 981 9705
NISSAN : 1831299-M91
TRUK : 09 59 532 212
TRUK : 23432873
SAF : 4 200 0029 00
SCANIA : 1305878
EC : 11075
|
32212A
32212DY
19781
10500481
32212
32212JR
HI-CAP32212J
32212
HR32212J
32212
4T-32212
VKHB 2347
VKT 8690
32212V
32212
SET1061
SET1061
0635 100 089
0635373008
0735 371 960
|
Nomor Referensi. (Untuk model lain, silakan berbagi OE dengan kami untuk pengecekan harga)
| Jenis | Ukuran Dasar (mm) | Jenis | Ukuran Dasar (mm) |
| DxDxB | DxDxB | ||
| DAC255200206 | 25x52x20.6mm | DAC35800047 | 35x80x47mm |
| DAC25520037 | 25x52x37mm | DAC35800045 | 35x80x45mm |
| DAC28580042 | 28x58x42mm | DAC36650037 | 36x65x37mm |
| DAC28610042 | 28x61x42mm | DAC36680033 | 36x68x33mm |
| DAC30600037 | 30x60x37mm | DAC37720037 | 37x72x37mm |
| DAC306000337 | 30x60.03x37mm | DAC38700038 | 38x70x38mm |
| DAC30640042 | 30x64x42mm | DAC38740050 | 38x74x50mm |
| DAC30630342 | 30x63.03x42mm | DAC38720034 | 38x72x34mm |
| DAC32730054 | 32x73x54mm | DAC38720034 | 38x72x34mm |
| DAC32640034 | 32x64x34mm | DAC38720040 | 35x72x40mm |
| DAC34620037 | 34x62x37mm | DAC38730040 | 38x73x40mm |
| DAC34640037 | 34x64x37mm | DAC39680037 | 39x68x37mm |
| DAC34660037 | 34x66x37mm | DAC39680637 | 39x68.06x37mm |
| DAC34680037 | 34x68x37mm | DAC39680737 | 39x68.07x37mm |
| DAC34680042 | 34x68x42mm | DAC39720037 | 39x72x37mm |
| DAC35640037 | 35x64x37mm | DAC39720637 | 39x72.06x37mm |
| DAC35650035 | 35x65x35mm | DAC40720037 | 40x72x37mm |
| DAC35660033 | 35x66x33mm | DAC40740036/34 | 40x74x36/34mm |
| DAC35660037 | 35x66x37mm | DAC40750037 | 40x75x37mm |
| DAC35680037 | 35x68x37mm | DAC408000302 | 40x80x30.2mm |
| DAC35680233/30 | 35x68.02x33mm | DAC40820040 | 40x82x40mm |
| DAC35720033 | 35x72x33mm | DAC40700043 | 40x70x43mm |
| DAC35720433 | 35x72.04x33mm | DAC40740040 | 40x74x40mm |
| DAC35720034 | 35x72x34mm | DAC42750037 | 42x75x37mm |
| DAC35720442 | 35x72.04x42mm | DAC42760039 | 42x76x39mm |
| DAC35618031 | 35x61.8x31mm | DAC42800342 | 42x80.03x42mm |
| DAC35720045 | 35x72x45mm | DAC42820036 | 42x82x36mm |
| Bantalan roda | Dimensi (mm) | Massa | Majelis Hub | Bantalan Kopling | Bantalan Truk | Bantalan rol tirus | Paket bantalan roda | Bantalan roda | |||
| D | D | B | C | ||||||||
| DAC25520037 | 25 | 52 | 37 | 37 | 0,31 | 54KWH01 | VKC2601 | 564734.H195 | HM218248/10 | VKBA 1333 | 510082 |
| DAC25520042 | 25 | 52 | 42 | 42 | 0,36 | 51KWH01 | VKC2091 | 566193.H195 | 32218 | VKBA 3455 | 510086 |
| DAC27530043 | 27 | 53 | 43 | 43 | 0,34 | 52710-25001 | VKC3500 | 566425.H195 | EK50045 | 510058 | |
| DAC27600050 | 27 | 60 | 50 | 50 | 0,56 | 52710-2D111 | VKC3501 | 566426.H195 | EK50046 | VKBA 3661 | 510092 |
| DAC28580044 | 28 | 58 | 44 | 44 | 0,48 | 51750-2D003 | VKC3502 | 566427.H195 | NP672572 | VKBA 1358 | 510093 |
| DAC29530037 | 29 | 53 | 37 | 37 | 0,35 | 42200-SAA-G02 | VKC3505 | 569868.H195 | 39581/39520 | VKBA 3614 | 510095 |
| DAC30550032 | 30 | 55 | 32 | 32 | 0,28 | 28BWK15 | VKC3507 | 571762.H195 | NP318274 | VKBA 3676 | 510100 |
| DAC34660037 | 34 | 66 | 37 | 37 | 0,5 | MB242820 | VKC3514 | 201059 | 30206 | VKBA 3680 | 510037 |
| DAC35650035 | 35 | 65 | 35 | 35 | 0,4 | 2DACF4-100/495 | VKC3515 | 800792 | 30207 | VKBA 3613 | 510038 |
| DAC35650037 | 35 | 65 | 37 | 37 | 0,51 | 27BWK03 ABS | VKC3519 | 803194A | 30209 | VKBA 3639 | 516004 |
| DAC37720033 | 37 | 72 | 33 | 33 | 43200-30R07 | VKC3523 | VKBA3552 | 30210 | VKBA 3648 | 516005 | |
| DAC37720037 | 37 | 72 | 37 | 37 | 0,59 | 3DACF026F1AS | VKC3527 | VKBA5314 | 30212 | VKBA 3596 | 516012 |
| DAC38700037 | 38 | 70 | 37 | 37 | 0,56 | 3DACF026F-2A | VKC3530 | VKBA5397 | 30313 | VKBA 6831 | 510072 |
| DAC38720036/33 | 38 | 72 | 36 | 33 | 0,56 | 53KWH01 | VKC3538 | VKBA5412 | 32007X | VKBA 1460 | 512405 |
| DAC38720036 | 38 | 72 | 36 | 36 | 1DACF6-98/44 | VKC3541 | VKBA5415 | 32212 | VKBA 3617 | 512416 | |
| DAC38720040 | 38 | 72 | 40 | 40 | 0,63 | 2DACF5-95/702 | VKC3548 | VKBA5416 | 32219 | VKBA 3556 | 512469 |
| DAC38740036 | 38 | 74 | 36 | 36 | 0,62 | 801344D | VKC3552 | VKBA5423 | 32309 | VKBA 6556 | 512494 |
| DAC39720037 | 39 | 72 | 37 | 37 | 0,6 | 2DACF5-100/425 | VKC3553 | VKBA5424 | 32310 | VKBA 3907 | 512510 |
| DAC39740036 | 39 | 74 | 36 | 36 | 0,54 | D6512615XE | VKC3555 | VKBA5552 | 33209 | VKBA 6520 | 512554 |
| DAC39740036/34 | 39 | 74 | 36 | 34 | 0,52 | 3DACF10-85/52 | VKC3556 | BTF0056EB | 33213 | VKBA 3656 | 512568 |
| DAC40720036/33 | 40 | 72 | 36 | 33 | 0,67 | 42410-87101 | VKC3558 | 80503A.H195 | 33213 | VKBA 3981 | 513335 |
| DAC40720036 | 40 | 72 | 36 | 36 | 42200-SM4-018 | VKC3559 | F-805567 | 33118 | VKBA 3532 | 513338 | |
| DAC40740036 | 40 | 74 | 36 | 36 | 0,62 | 3DACF026F-1AC | 3151027031 | 805092C | 32310 | VKBA 3658 | 513365 |
| DAC408402538 | 40 | 84.02 | 53.8 | 53.8 | 0,97 | 43560-26010 | F - 358286 | 805011C | 33215 | VKBA 3554 | 513366 |
| DAC42720038 | 42 | 72 | 38 | 38 | 0,54 | 89411-B2050 | 360809B | 805479 | 33116 | VKBA 3786 | 513389 |
| DU42750060 | 42 | 75 | 60 | 60 | 2DACF6-1143/59 | F - 358547 | 805008 | 3977X/3921XA | VKBA 3605 | 27BWD01J | |
| DAC42760033 | 42 | 76 | 33 | 33 | 0,65 | 3DACF10-84/78-I | CR 1315 | 805531 | LM78349A/10C | VKBA 3576 | 28BWD03A |
| DAC42760038/35 | 42 | 76 | 38 | 35 | 0,65 | BR930872 | 500000820 | 805012 | 32206B | VKBA 3643 | 28BWD01A |
| DAC42760040 | 42 | 76 | 40 | 40 | 0,68 | 42410-12130 | 3151133031 | BTH0018A | L44649/10 | VKBA3608 | 30BWD01A |
| DAC43790045 | 43 | 79 | 45 | 45 | 0,84 | 2DACF4-100/565 | 3151044031 | BTH0022 | L45449/L45410 | VKBA1437 | 32BWD05 |
| DAC38730040 | 38 | 73 | 40 | 40 | 0 | ||||||
| DAC45820045 | 45 | 82 | 45 | 45 | LA01-33-04XB | 3151899001 | BTH0053 | 34274/34492A | VKBA 007 | 34BWD11 | |
| DAC49900045 | 49 | 90 | 45 | 45 | 1.08 | 42410-87701 | 3151807001 | BTH0055 | 594A/592A | VKBA3404 | 34BWD07B |
| DAC50890051 | 50 | 89 | 51 | 51 | 55BWKH01V | 500023560 | 81 93420 0346 | 32218 | VKBA1441 | 34BWD09A | |
| DAC52960050 | 52 | 96 | 50 | 50 | 43202-72B00 | PRB-42 | VKBA528 | JH307749/10 | VKBA 959 | 35BWD19E | |
| DAC54960051 | 54 | 96 | 51 | 51 | 89544-06070(R) | 3151875001 | SET420 | 42686/42624 | VKBA 733 | 35BWD07 | |
| DU55900054 | 55 | 90 | 54 | 54 | 2DACF5-100/56 | 500053960 | VKBA 673 | 575S/572 | VKBA 505 | 35BWD07A | |
| DAC55900060 | 55 | 90 | 60 | 60 | 2DACF6-100/45 | F-218286.2 | VKBA523 | 482A/472 | VKBA 5038 | 35BWD16 | |
Berbagai macam aplikasi:
• peralatan pertanian dan kehutanan
• gearbox otomotif dan industri
• komponen listrik otomotif dan truk, seperti alternator
• motor listrik
• mesin fluida
• penanganan material
• perkakas listrik dan peralatan rumah tangga
• mesin tekstil
• duaWheeler
FAQ
Q1: Saya ingin membeli produk Anda, bagaimana saya bisa membayar?
A: Anda dapat membayar melalui T/T , L/C , WEST UNION , ESCROW , PAYPAL , DLL.Terutama ESCROW, yang dijamin oleh Alibaba.com.Ini aman dan efektif.
Q2: Bagaimana Anda bisa menjamin kualitas?
A: Jika Anda menemui masalah kualitas, kami berjanji untuk mengganti barang atau mengembalikan dana Anda.
T3: Jika kami tidak menemukan apa yang kami inginkan di situs web Anda, apa yang harus kami lakukan?
A: Anda dapat mengirim email kepada kami deskripsi dan gambar produk yang Anda butuhkan, kami akan memeriksa apakah kami memilikinya.Kami mengembangkan item baru setiap bulan, dan beberapa di antaranya belum diunggah ke situs web tepat waktu.Atau Anda dapat mengirimkan sampel kepada kami dengan pos kilat, kami akan mengembangkan item ini untuk pembelian massal.
Q4: Bisakah kita membeli 1 pc dari setiap item untuk pengujian kualitas?
A: Ya, kami senang mengirim 1 buah untuk pengujian kualitas jika kami memiliki stok barang yang Anda butuhkan.
Mengapa memilih kami?
1. Mari kita bicara—kita TIDAK memiliki hambatan dalam bahasa
2. Minta informasi item lebih lanjut --- ada hampir 2000 produk untuk pilihan Anda!
3. Tulis kami untuk kutipan --- balas Anda dalam waktu 24 jam, satu kutipan dapat siap dalam 2 menit untuk produk siap!
Kirim pertanyaan Anda langsung ke kami
