Tempat asal:
Cina
Nama merek:
Z&H
Nomor model:
TUJ60TF FY65TF
| Kode Produk Pabrikan | TA65TF |

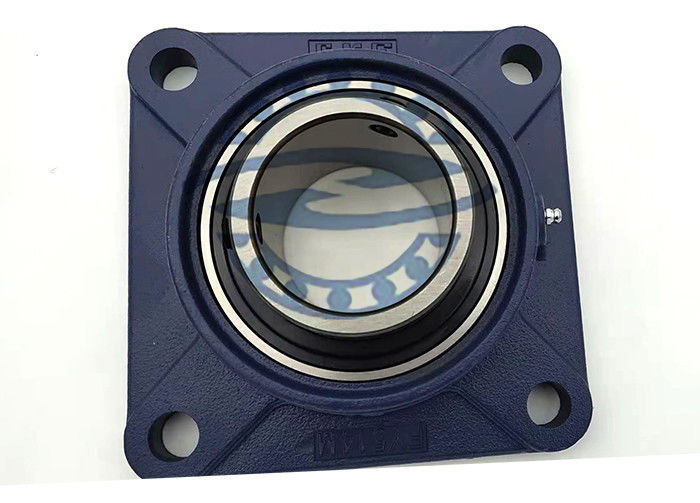

| Deskripsi Produk Dasar | Unit bergelang 4-baut Y-Bearing Square |
| Pengukuran | Metrik |
| UOM | Setiap |
| identitas (mm) | 65 |
| Berat (Kg) | 4.77 |
| Ex-3 Fitur 2 | Setel penguncian sekrup |
| Pusat Lubang Baut In-1 (mm) | 149.5 |
| Bahan Bantalan Ma-2 | Baja bantalan |
| Bahan Perumahan Ma-3 | Besi cor |
| Co-2 Bearing/Insert | YAR 213-2F |
| Co-3 Perumahan | TA 513 M |
| Model | Ukuran (mm) | |||||
| D | D | J | A2 | n | A | |
| UCF201 | 12 | 86 | 64 | 15 | 12 | 25.5 |
| UCF202 | 15 | 86 | 64 | 15 | 12 | 26,5 |
| UCF203 | 17 | 86 | 64 | 15 | 12 | 27.5 |
| UCF204 | 20 | 86 | 64 | 15 | 12 | 28.5 |
| UCF205 | 25 | 95 | 70 | 16 | 12 | 27 |
| UCF206 | 30 | 108 | 83 | 18 | 12 | 31 |
| UCF207 | 35 | 117 | 92 | 19 | 14 | 34 |
| UCF208 | 40 | 130 | 102 | 21 | 16 | 36 |
| UCF209 | 45 | 137 | 105 | 22 | 18 | 38 |
| UCF210 | 50 | 143 | 111 | 22 | 20 | 40 |
| UCF211 | 55 | 162 | 130 | 25 | 22 | 43 |
| UCF212 | 60 | 175 | 143 | 29 | 22 | 48 |
| UCF213 | 65 | 187 | 149 | 30 | 22 | 50 |
| UCF214 | 70 | 193 | 152 | 31 | 22 | 54 |

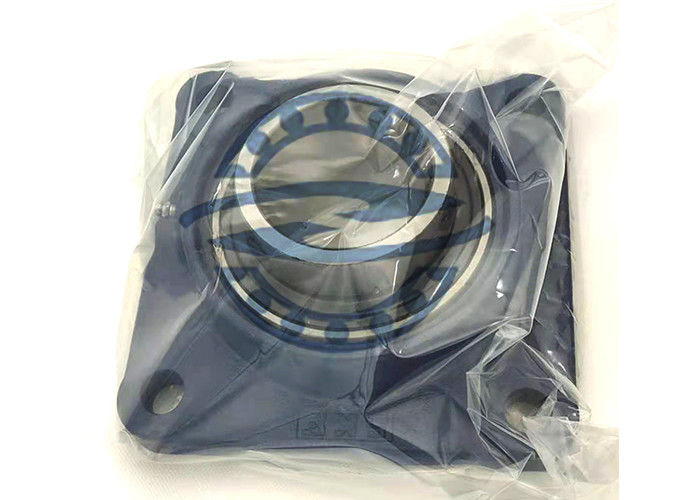

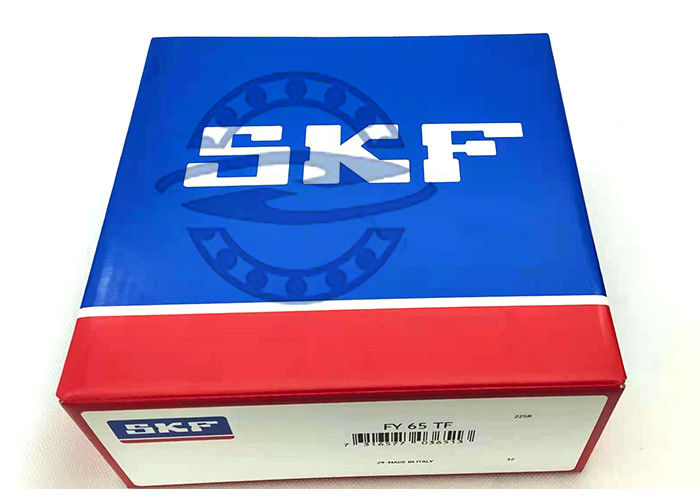

1 .Kemasan kotak tunggal, lalu di karton lalu di Pallet.
2 .Kemasan standar ekspor.
3 .Sesuai permintaan pelanggan.
1. Anda harus membayar di muka
2. Anda dapat menggunakan serikat barat
3.L/C pada pandangan
4.30% T/T di muka.70% terhadap salinan B/L
Kirim pertanyaan Anda langsung ke kami
