Tempat asal:
Cina Jepang
Nama merek:
QIEAL ZH
Nomor model:
F-208098
Bantalan Rol Silinder F-208098.RNN Bantalan Gearbox F208098 35X52.09X26.5 Mm
Deskripsi Produk
F-208098 Bantalan Rol Silinder F-208098.RNN Bantalan Gearbox F20809835X52.09X26,5 mm
Bantalan rol silinder dapat memberikan panduan aksial planet ini. Ini dapat dilakukan dengan menggunakan ring aksial dan cincin penahan yang diatur di kedua sisi elemen bergulir. Bantalan tersedia sebagai bantalan penempatan baris tunggal dan ganda.Mereka dapat mendukung tidak hanya gaya radial yang tinggi tetapi juga gaya aksial di kedua arah dan oleh karena itu dapat memandu poros secara aksial di kedua arah. Bantalan disuplai dalam desain terbuka.Mereka tidak dilumasi dan dapat dilumasi dengan oli atau gemuk. Elemen penggulung dilindungi dari kerusakan dan kehilangan selama pengangkutan dengan menggunakan selongsong plastik.
| Model bantalan | F-208098 f-208098.RNN |
| Struktur | Bantalan Rol Silinder Baris Ganda |
| (dxDxB) | 35X52.09X26,5 mm |
| Bobot / | 0,25 KG |
| KODE HS | 8482500000 |
| Waktu Pimpin | Dalam 3 Hari |
| Orang yang dapat dihubungi | chen (Nyonya) |
| SKYPE | bantalan qreal |
| WhatsApp / Obrolan Web | +86-1862602705 |
| Surel | qireal220929@163.com |

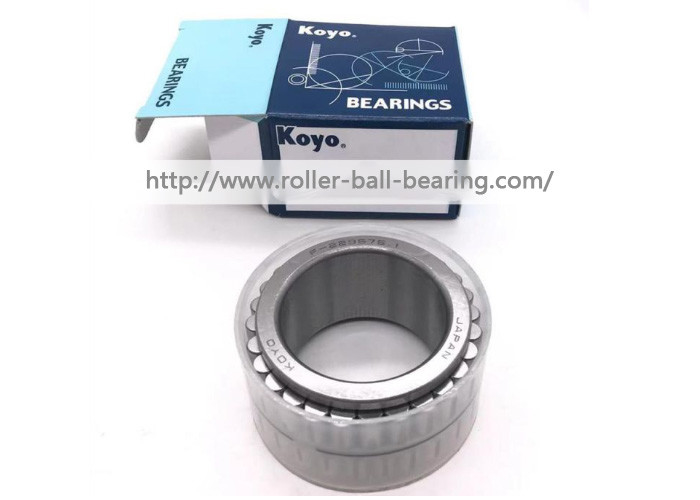

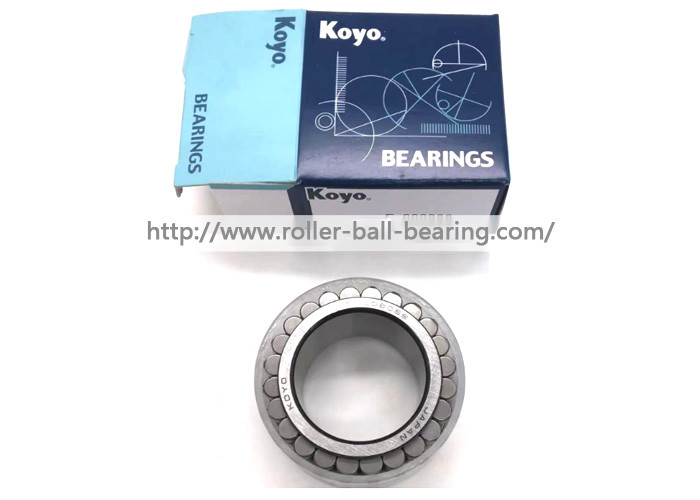

Gambar rinci
F-208098 Bantalan Peredam F-208098.RNN Bantalan Rol Silinder F 208098
| bantalan no. | Berat (kg) | d (mm) | Dr (mm) | B(mm) |
| F-227932 | 0.12 | 20 | 36 | 30 |
| F-219593 | 0,144 | 25 | 42 | 30 |
| F-204045 | 0.27 | 30 | 49 | 34 |
| F-219590 | 0,28 | 35 | 55 | 36 |
| F-12343 | 0.4 | 45 | 66 | 40 |
| F-210408 | 0,46 | 50 | 72 | 40 |
| HS-262 | 0,86 | 55 | 83 | 46 |
| RNNX22AV | 0,895 | 60 | 86 | 46 |
| F-24*40.3*26 | 0,94 | 65 | 93 | 46 |
| RNN3005X3V | 1.12 | 70 | 100 | 54 |
| F-217615 | 1.35 | 75 | 107 | 54 |
| F-210304 | 1.8 | 80 | 116 | 60 |
| RNN306X3V | 1.85 | 85 | 121 | 60 |
| F-32*46.6*28 | 2.6 | 90 | 130 | 67 |
| F-208098 | 2.6 | 100 | 139 | 67 |
| RNN3007X3V | 3.95 | 110 | 156 | 80 |
| F-385328 | 4,52 | 120 | 167 | 80 |
| HS-263 | 6.7 | 130 | 183 | 95 |
| RNNX10V | 7.914 | 140 | 197 | 95 |
| F-237005 | 8.215 | 150 | 206 | 100 |
| F-229575.1 | 11.09 | 160 | 224 | 109 |
| 567079B | 15.6 | 170 | 242 | 122 |
| F-22970 | RSL185004 | RSL183004 | RSL182204 | RSL182304 |
| F-219012 | RSL185005 | RSL183005 | RSL182205 | RSL182305 |
| F-210390 | RSL185006 | RSL183006 | RSL182206 | RSL182306 |
| F-207407 | RSL185007 | RSL183007 | RSL182207 | RSL182307 |
| F-212543 | RSL185008 | RSL183008 | RSL182208 | RSL182308 |
| F-204754 | RSL185009 | RSL183009 | RSL182209 | RSL182309 |
| F-201346 | RSL185010 | RSL183010 | RSL182210 | RSL182310 |
| F-208098 | RSL185011 | RSL183011 | RSL182211 | RSL182311 |
| F-208099 | RSL185012 | RSL183012 | RSL182212 | RSL182312 |
| F-204783 | RSL185013 | RSL183013 | RSL182213 | RSL182313 |
| F-204781 | RSL185014 | RSL183014 | RSL182214 | RSL182314 |
| F-204782 | RSL185015 | RSL183015 | RSL182215 | RSL182315 |
| F-217411 | RSL185016 | RSL183016 | RSL182216 | RSL182316 |
| F-213617 | RSL185017 | RSL183017 | RSL182217 | RSL182317 |
| F-210408 | RSL185018 | RSL183018 | RSL182218 | RSL182318 |
| F-238900 | RSL185020 | RSL183020 | RSL182220 | RSL182320 |
| F-212590 | RSL185022 | RSL183022 | RSL182222 | RSL182323 |
| BPS2518 | RSL185024 | RSL183024 | RSL182224 | RSL182324 |
| 1056-25 | RSL185026 | RSL183026 | RSL182226 | RSL182326 |
| RNNX22V | RSL185028 | RSL183028 | RSL182228 | RSL182328 |
| RNN50x69.67x32 | RSL185050 | RSL183030 | RSL182222 | RSL182323 |
| RNN40x61.74x32 | RSL185032 | RSL183032 | RSL182232 | RSL182332 |
| RNN40x57.81x34 | RSL185034 | RSL183034 | RSL182234 | RSL182334 |
| RNN55x77.07x41 | RSL185036 | RSL183036 | RSL182236 | RSL182336 |
| RNN50x72.33x39 | RSL185038 | RSL183038 | RSL182238 | RSL182338 |
| RNN50x72.33x42 | RSL185040 | RSL183040 | RSL182240 | RSL182340 |
| d/mm | D/mm | B/mm | Cr kN | Kor kN | bantalan |
| 18 | 32.300 | 20.5 | 24.1 | 25.7 | BPS 2699 |
| 22 | 36.200 | 30.0 | 47,5 | 68.8 | BPS 2435 |
| 22 | 38.750 | 22.5 | 34.6 | 38.1 | BPS 2535 |
| 22 | 38.750 | 22.5 | 34.6 | 38.1 | BPS 2834 |
| 24 | 40.250 | 26.0 | 44.0 | 59.8 | BPS 2400 |
| 24 | 40.250 | 34.0 | 53.3 | 76.4 | BPS 2597 |
| 25 | 40.250 | 26.0 | 44.0 | 59.8 | BPS 2686 |
| 25 | 40.250 | 32.0 | 53.3 | 76.4 | BPS 2613 |
| 28 | 44.450 | 34.0 | 70.8 | 99.8 | BPS 2776 |
| 30 | 46.400 | 32.0 | 73.2 | 105.7 | BPS 2594 |
| 30 | 48.250 | 40.0 | 85.8 | 131.6 | BPS 2687 |
| 30 | 49.600 | 26.0 | 57.0 | 70.3 | BPS 2510 |
| 30 | 49.600 | 24.0 | 50.8 | 60.6 | BPS 2178 |
| 30 | 49.600 | 25.0 | 50.8 | 60.6 | BPS 2651 |
| 30 | 49.600 | 26.0 | 57.1 | 70.4 | BPS 2198 |
| 30 | 49.600 | 30.0 | 69.1 | 90.0 | BPS 2683 |
| 32 | 46.600 | 25.0 | 54.3 | 82,5 | BPS 2508 |
| 32 | 46.600 | 28.0 | 54.3 | 82,5 | BPS 2183 |
| 32 | 46.600 | 28.0 | 54.3 | 82,5 | BPS 2439 |
| 32 | 48.240 | 34.0 | 76.0 | 112.0 | BPS 2668 |
| 32 | 51.750 | 25.0 | 59.1 | 74.7 | BPS 2496 |
| 32 | 51.750 | 29.0 | 71.5 | 95.5 | BPS 2579 |
| 34 | 50.200 | 29.0 | 66.7 | 96.6 | BPS 2634 |
| 35 | 49.800 | 28.0 | 56.8 | 89.7 | BPS 2434 |
| 35 | 52.090 | 26,5 | 56.6 | 79,4 | BPS 2723 |
| 35 | 55.520 | 36.0 | 83.6 | 113.6 | BPS 2470 |
| 35 | 55.520 | 36.0 | 83.6 | 113.6 | BPS 2520 |
| 35 | 55.520 | 36.0 | 83.6 | 113.6 | BPS 2706 |
| 35 | 59.190 | 27.0 | 68.4 | 85.5 | BPS 2721 |
| 35 | 64.300 | 26,5 | 72.9 | 95.7 | BPS 2528 |
| 38 | 52.950 | 28.0 | 59.2 | 97.0 | BPS 2164 |
| 38 | 52.950 | 29.5 | 59.2 | 97.0 | BPS 2504 |
| 38 | 52.950 | 29.5 | 59.2 | 97.0 | BPS 2806 |
| 38 | 54.686 | 29.5 | 56.9 | 86.7 | BPS 2464 |
| 38 | 54.690 | 29.5 | 63.0 | 99,0 | BPS 2458 |
| 38 | 57.910 | 38.0 | 106.0 | 156.0 | BPS 2669 |
| 40 | 57.810 | 34.0 | 96.0 | 141.0 | BPS 2827 |
| 40 | 60.680 | 31.0 | 80.8 | 118,1 | BPS 2729 |
| 40 | 61.740 | 28.0 | 70.6 | 90.6 | BPS 2188 |
| 40 | 61.740 | 35.5 | 100.0 | 140.0 | BPS 2650 |
| 42 | 60.750 | 37.0 | 100,7 | 156.9 | BPS 2412 |
| 42 | 60.750 | 37.0 | 107.2 | 169.7 | BPS 2777 |
| 44 | 61.600 | 34.0 | 90.1 | 153.0 | BPS 2592 |
| 44 | 62.970 | 37.0 | 103,5 | 164.4 | BPS 2401 |
| 45 | 61.550 | 32.0 | 77.3 | 125.7 | BPS 2559 |
| 45 | 61.550 | 36.0 | 90.0 | 153.0 | BPS 2425 |
| 45 | 65.020 | 34.0 | 94.3 | 140.4 | BPS 2647 |
| 45 | 66.850 | 37.5 | 105.8 | 156.7 | BPS 2722 |
| 45 | 66.850 | 37.5 | 123.0 | 157.0 | BPS 2828 |
| 45 | 83.880 | 85.0 | 268.0 | 393.9 | BPS 2619 |
| 46 | 69.500 | 45.0 | 145.0 | 207.0 | BPS 2807 |
| 50 | 67.280 | 32.0 | 75.7 | 145.2 | BPS 2530 |
| 50 | 67.360 | 40.0 | 109.0 | 201.0 | BPS 2720 |
| 50 | 69.580 | 40.0 | 118.0 | 202.0 | BPS 2719 |
| 50 | 69.670 | 32.0 | 89.1 | 141.0 | BPS 2492 |
| 50 | 69.670 | 37.5 | 111.2 | 186.9 | BPS 2609 |
| 50 | 72.050 | 37.0 | 111.7 | 172.5 | BPS 2466 |
| 50 | 72.330 | 40.0 | 130.9 | 194.3 | BPS 2190 |
| 50 | 72.330 | 40.0 | 130.9 | 194.3 | BPS 246 |
Kemasan produk
