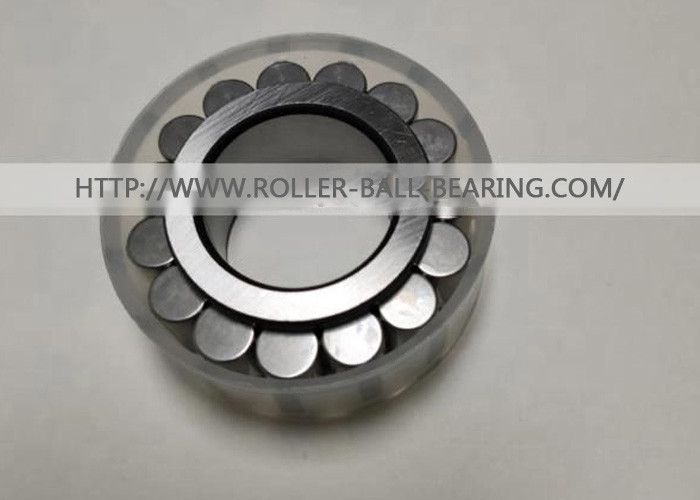

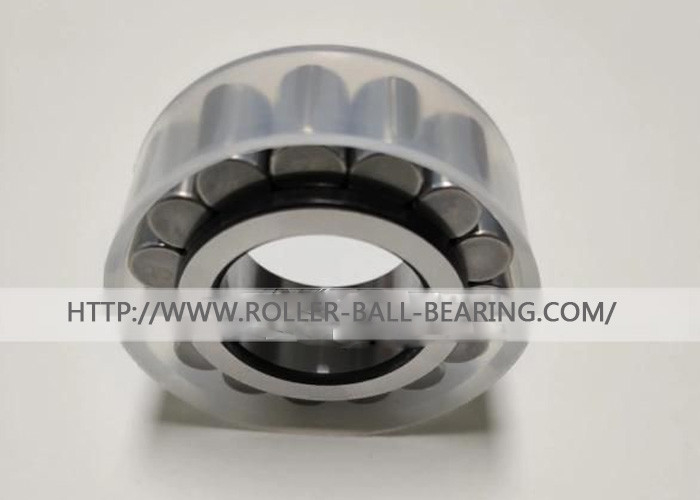

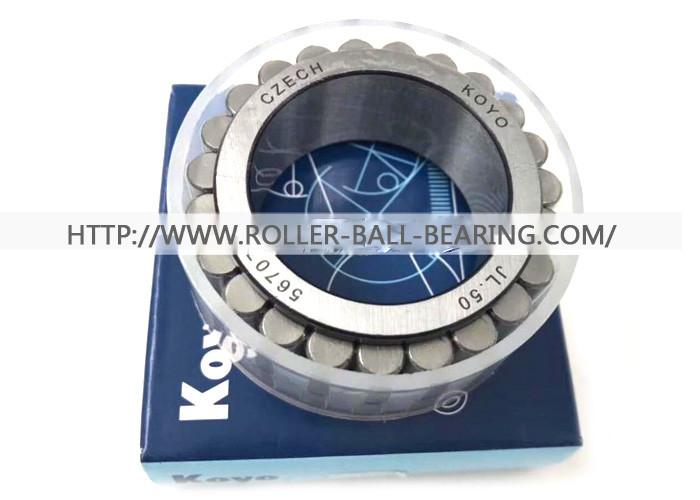

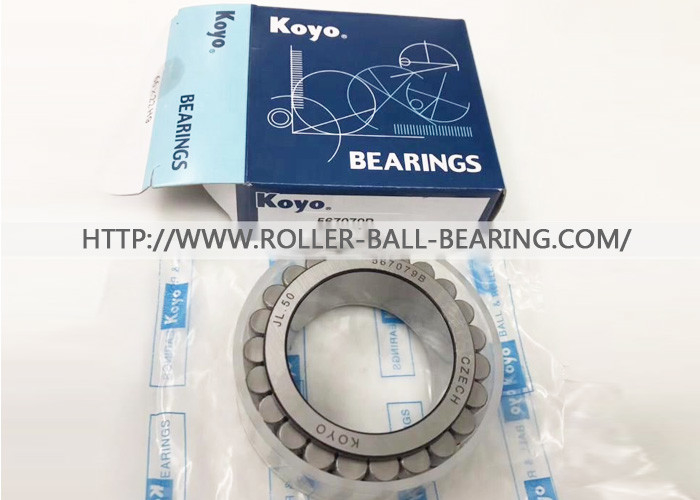

KOYO Bantalan Rol Silinder Pelengkap Penuh 567079B F-567079B

Deskripsi Produk

penuhBantalan rol silinder dapat memberikan panduan aksial planet ini. Ini dapat dilakukan dengan menggunakan ring aksial dan cincin penahan yang diatur di kedua sisi elemen bergulir. Bantalan tersedia sebagai bantalan penempatan baris tunggal dan ganda.Mereka dapat mendukung tidak hanya gaya radial yang tinggi tetapi juga gaya aksial di kedua arah dan oleh karena itu dapat memandu poros secara aksial di kedua arah. Bantalan disuplai dalam desain terbuka.Mereka tidak dilumasi dan dapat dilumasi dengan oli atau gemuk. Elemen penggulung dilindungi dari kerusakan dan kehilangan selama pengangkutan dengan menggunakan selongsong plastik.

Model kotak roda gigi reduksi lainnya

Model i) (ID) (OD) (Lebar)
RSL-183015 bantalan 75 x107.9 x30mm
RSL-183013 bantalan 65 x93.09 x26
RSL-183012 bantalan 60 x86.74x 26
RSL-182212 bantalan 60 x99.17 x28
RSL-182211 bantalan 55 x88.81 x25
RSL-182210bantalan 50 x81.4 x23
RSL-182208 bantalan 40 x70.94 x23
RSL-182207 bantalan 35 x63.97 x23
RSL-182206bantalan30 x55.19x 20
RSL-182205bantalan25x46.52x18
F-219590bantalan30 x 50,74x 14
F-219593bantalan25x 50,74x14
RN2205bantalan25x46.55x18
RN204bantalan20x36,85x14
RN306bantalan30x62x19

F-212543bantalan50 x72,25 x 40
F-204783bantalan50 x72.33 x39
F-219012bantalan45 x65,02 x34
F-204781bantalan40x 61,74x35,5
F-208099bantalan40 x57,81 x34
F-210408bantalan22x38.75x22.5
F-208098bantalan35x 52,09x 26,5
RNN3006X3Vbantalan30x 49,6x 25
RNN3005X3Vbantalan35x42.6x23

Gambar rinci







tanpa cincin luar rol silinder pelengkap lengkap /Bantalan Rol Gearbox

jika memiliki item jenis bantalan ini. pls periksa sebagai berikut:

bantalan no.	Berat (kg)	d (mm)	Dr (mm)	B(mm)
F-227932	0.12	20	36	30
F-219593	0,144	25	42	30
F-204045	0.27	30	49	34
F-219590	0,28	35	55	36
F-12343	0.4	45	66	40
F-210408	0,46	50	72	40
HS-262	0,86	55	83	46
RNNX22AV	0,895	60	86	46
F-24*40.3*26	0,94	65	93	46
RNN3005X3V	1.12	70	100	54
F-217615	1.35	75	107	54
F-210304	1.8	80	116	60
RNN306X3V	1.85	85	121	60
F-32*46.6*28	2.6	90	130	67
F-208098	2.6	100	139	67
RNN3007X3V	3.95	110	156	80
F-385328	4,52	120	167	80
HS-263	6.7	130	183	95
RNNX10V	7.914	140	197	95
F-237005	8.215	150	206	100
F-229575.1	11.09	160	224	109
567079B	15.6	170	242	122
F-22970	RSL185004	RSL183004	RSL182204	RSL182304
F-219012	RSL185005	RSL183005	RSL182205	RSL182305
F-210390	RSL185006	RSL183006	RSL182206	RSL182306
F-207407	RSL185007	RSL183007	RSL182207	RSL182307
F-212543	RSL185008	RSL183008	RSL182208	RSL182308
F-204754	RSL185009	RSL183009	RSL182209	RSL182309
F-201346	RSL185010	RSL183010	RSL182210	RSL182310
F-208098	RSL185011	RSL183011	RSL182211	RSL182311
F-208099	RSL185012	RSL183012	RSL182212	RSL182312
F-204783	RSL185013	RSL183013	RSL182213	RSL182313
F-204781	RSL185014	RSL183014	RSL182214	RSL182314
F-204782	RSL185015	RSL183015	RSL182215	RSL182315
F-217411	RSL185016	RSL183016	RSL182216	RSL182316
F-213617	RSL185017	RSL183017	RSL182217	RSL182317
F-210408	RSL185018	RSL183018	RSL182218	RSL182318
F-238900	RSL185020	RSL183020	RSL182220	RSL182320
F-212590	RSL185022	RSL183022	RSL182222	RSL182323
BPS2518	RSL185024	RSL183024	RSL182224	RSL182324
1056-25	RSL185026	RSL183026	RSL182226	RSL182326
RNNX22V	RSL185028	RSL183028	RSL182228	RSL182328
RNN50x69.67x32	RSL185050	RSL183030	RSL182222	RSL182323
RNN40x61.74x32	RSL185032	RSL183032	RSL182232	RSL182332
RNN40x57.81x34	RSL185034	RSL183034	RSL182234	RSL182334
RNN55x77.07x41	RSL185036	RSL183036	RSL182236	RSL182336
RNN50x72.33x39	RSL185038	RSL183038	RSL182238	RSL182338
RNN50x72.33x42	RSL185040	RSL183040	RSL182240	RSL182340

d/mm	D/mm	B/mm	Cr kN	Kor kN	bantalan
18	32.300	20.5	24.1	25.7	bantalan CPM 2699
22	36.200	30.0	47,5	68.8	bantalan CPM 2435
22	38.750	22.5	34.6	38.1	bantalan CPM 2535
22	38.750	22.5	34.6	38.1	bantalan CPM 2834
24	40.250	26.0	44.0	59.8	bantalan CPM 2400
24	40.250	34.0	53.3	76.4	bantalan CPM 2597
25	40.250	26.0	44.0	59.8	bantalan CPM 2686
25	40.250	32.0	53.3	76.4	bantalan BPS 2613
28	44.450	34.0	70.8	99.8	bantalan CPM 2776
30	46.400	32.0	73.2	105.7	bantalan CPM 2594
30	48.250	40.0	85.8	131.6	bantalan CPM 2687
30	49.600	26.0	57.0	70.3	bantalan CPM 2510
30	49.600	24.0	50.8	60.6	bantalan CPM 2178
30	49.600	25.0	50.8	60.6	bantalan CPM 2651
30	49.600	26.0	57.1	70.4	bantalan CPM 2198
30	49.600	30.0	69.1	90.0	bantalan CPM 2683
32	46.600	25.0	54.3	82,5	bantalan CPM 2508
32	46.600	28.0	54.3	82,5	bantalan CPM 2183
32	46.600	28.0	54.3	82,5	bantalan CPM 2439
32	48.240	34.0	76.0	112.0	bantalan CPM 2668
32	51.750	25.0	59.1	74.7	bantalan CPM 2496
32	51.750	29.0	71.5	95.5	bantalan CPM 2579
34	50.200	29.0	66.7	96.6	bantalan CPM 2634
35	49.800	28.0	56.8	89.7	bantalan CPM 2434
35	52.090	26,5	56.6	79,4	bantalan CPM 2723
35	55.520	36.0	83.6	113.6	bantalan CPM 2470
35	55.520	36.0	83.6	113.6	bantalan CPM 2520
35	55.520	36.0	83.6	113.6	bantalan CPM 2706
35	59.190	27.0	68.4	85.5	bantalan CPM 2721
35	64.300	26,5	72.9	95.7	bantalan CPM 2528
38	52.950	28.0	59.2	97.0	bantalan CPM 2164
38	52.950	29.5	59.2	97.0	bantalan CPM 2504
38	52.950	29.5	59.2	97.0	bantalan CPM 2806
38	54.686	29.5	56.9	86.7	bantalan CPM 2464
38	54.690	29.5	63.0	99,0	CPM 2458 bantalan
38	57.910	38.0	106.0	156.0	bantalan CPM 2669
40	57.810	34.0	96.0	141.0	bantalan CPM 2827
40	60.680	31.0	80.8	118,1	bantalan CPM 2729
40	61.740	28.0	70.6	90.6	bantalan CPM 2188
40	61.740	35.5	100.0	140.0	bantalan CPM 2650
42	60.750	37.0	100,7	156.9	bantalan CPM 2412
42	60.750	37.0	107.2	169.7	bantalan CPM 2777
44	61.600	34.0	90.1	153.0	bantalan CPM 2592
44	62.970	37.0	103,5	164.4	bantalan CPM 2401
45	61.550	32.0	77.3	125.7	bantalan CPM 2559
45	61.550	36.0	90.0	153.0	bantalan CPM 2425
45	65.020	34.0	94.3	140.4	bantalan BPS 2647
45	66.850	37.5	105.8	156.7	bantalan CPM 2722
45	66.850	37.5	123.0	157.0	bantalan CPM 2828
45	83.880	85.0	268.0	393.9	bantalan CPM 2619
46	69.500	45.0	145.0	207.0	bantalan CPM 2807
50	67.280	32.0	75.7	145.2	bantalan CPM 2530
50	67.360	40.0	109.0	201.0	bantalan CPM 2720
50	69.580	40.0	118.0	202.0	bantalan CPM 2719
50	69.670	32.0	89.1	141.0	bantalan CPM 2492
50	69.670	37.5	111.2	186.9	bantalan CPM 2609
50	72.050	37.0	111.7	172.5	Bantalan CPM 2466
50	72.330	40.0	130.9	194.3	bantalan CPM 2190
50	72.330	40.0	130.9	194.3	CPM 2465 bantalan





Kemasan produk

Pengepakan: 1. Pengepakan industri 2. Kotak tunggal + karton + palet / kasing 3. Sesuai permintaan pelanggan Waktu pengiriman: 1. Umumnya setelah pembayaran: dalam 3 hari.2. Jika perlu menghasilkan, sekitar 30 hari Pembayaran Kurang USD1000, 100% T/T di muka.1. Lebih banyak USD1000, 30% T/T di muka, 70% T/T sebelum pengiriman

Pengiriman: melalui laut/udara/ekspres seperti EMS FEDEX TNT DHL...
